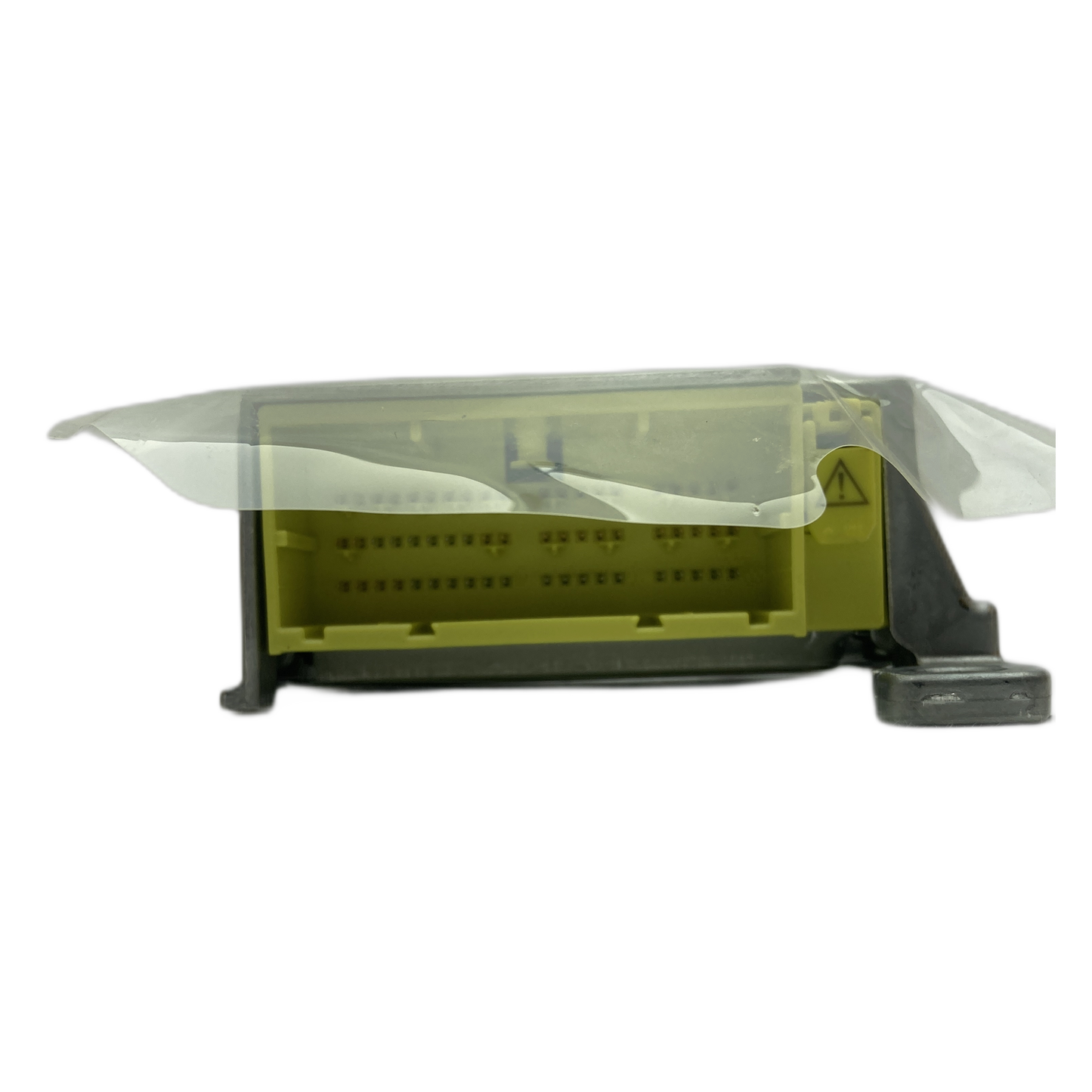

What is a Toyota iQ KGJ10 airbag control unit?
The Toyota iQ KGJ10 airbag control unit is the central safety unit in your vehicle, precisely activating all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensors, stores important crash data, and ensures the proper functioning of the entire SRS system for your safety.
This electronic control unit (ECU) serves as the command center for the Supplemental Restraint System (SRS).
It processes signals from acceleration sensors and other impact sensors to trigger the protective systems when necessary.
A functioning airbag control unit is essential for the passive safety and comprehensive occupant protection of your Toyota iQ KGJ10.
Why is the Toyota iQ KGJ10 airbag control unit defective?
A defective Toyota iQ KGJ10 airbag control unit often occurs after an airbag deployment, as crash data is permanently stored in memory and requires a reset. Internal errors within the module itself or communication problems in the vehicle network can also lead to a failure, necessitating a Toyota iQ KGJ10 airbag control unit repair.
After an accident, the module stores irreversible crash data that prevents the system from restarting without proper repair.
Internal component failures or short circuits can also damage the control unit and impair its function.
Sometimes problems with the power supply or the communication bus lead to a complete failure.
Common error codes for Toyota iQ KGJ10 airbag control unit repair
During Toyota iQ KGJ10 airbag control unit repair, specific error codes occur that directly indicate problems with the control unit itself. These codes, such as B1015 or B207F, signal malfunctions or stored crash data and require professional diagnostics to resolve the issue.
- B1000 → Control unit communication error → Error in the data transmission or internal communication of the airbag control unit.
- B1015 → Faulty airbag control module → Internal defect or damage to the module, often after a crash.
- B107E → Airbag module related problem → A general or unspecified problem that originates directly from the airbag module.
- B1139 → SRS control unit error → A comprehensive error within the entire SRS unit, reported directly by the control unit.
- B207F → SRS Unit Error → Critical functional error of the SRS control unit, requiring immediate service or repair.
What part numbers are available for the Toyota iQ KGJ10 airbag control unit repair?
Two primary OEM part numbers are relevant for the Toyota iQ KGJ10 airbag control unit repair: Toyota's own 89170-74020 and Autoliv's supplier number 150300-2193. Both numbers identify the exact airbag control unit module for your vehicle and are crucial for the correct replacement part procurement or repair.
Part number 89170-74020 is the original manufacturer (OEM) part number from Toyota, which is often manufactured by Autoliv.
An alternative OEM number is 150300-2193 from Autoliv, the direct supplier of the control unit.
These numbers guarantee the exact compatibility of the airbag control unit with the Toyota iQ KGJ10 and are essential for any professional repair.
Compatibility and functionality of the Toyota iQ KGJ10 airbag control unit
The Toyota iQ KGJ10 airbag control unit is specifically designed for the Toyota iQ KGJ10 (model years approximately 2008-2015) and ensures precise control of all airbags and seatbelt pretensioners. Its functions include continuous sensor monitoring, rapid deployment in the event of a collision, and the storage of relevant event data for diagnostics.
It is primarily designed for the Toyota iQ of the KGJ10 series, typically for models with the 1.0-liter petrol engine (50 kW / 68 hp).
The control unit continuously analyzes signals from front and side impact sensors as well as belt tensioner sensors.
In the event of an impact, it synchronously deploys driver, front passenger, side and knee airbags to maximize occupant protection.
The integrated error memory function enables precise diagnosis, which can be read out via the OBD-II interface.
Installation position and advantages of a Toyota iQ KGJ10 airbag control unit repair
The Toyota iQ KGJ10 airbag control unit is typically located centrally in the vehicle interior, usually in the footwell or under the dashboard, to ensure optimal sensor connections. A professional Toyota iQ KGJ10 airbag control unit repair offers a cost-effective and sustainable alternative to an expensive replacement by restoring the full functionality of the original part.
The strategic installation position ensures short signal paths to the various airbag modules and sensors in the vehicle.
It has several multi-pin connectors for power supply, data transmission and connection to all SRS components.
A professional repair can delete stored crash data and correct internal errors in the module.
This form of repair is an environmentally friendly option and often saves the costly purchase of a new module from a specialist workshop.
