What is a Toyota Starlet Cross airbag control unit?
The Toyota Starlet Cross airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It continuously monitors sensors, stores relevant crash data, and thus ensures the proper functioning of all airbag modules in the vehicle for maximum safety.
This highly sensitive control unit analyzes signals from crash sensors in real time. It makes precise decisions about whether to deploy airbags and seatbelt pretensioners in the event of a collision.
The airbag control unit's software is specifically tailored to the P9 model series, including the EP91. It enables reliable diagnostics and monitoring of the entire safety system.
Why is the Toyota Starlet Cross airbag control unit defective?
The Toyota Starlet Cross airbag control unit is often defective because it stores crash data after an accident and is therefore locked, or due to internal component failure, corrosion at connections or voltage fluctuations, which make a necessary Toyota Starlet Cross airbag control unit repair necessary.
A common cause of failure is the storage of accident data. This blocks the control unit after a collision and must be reset or replaced to restart the system.
Aging, moisture ingress, or electrical surges can also cause internal damage. Such defects impair functionality and require precise diagnosis and repair by a specialist workshop.
A defective control unit is often signaled by the illuminated airbag warning light. In such cases, a prompt Toyota Starlet Cross airbag control unit repair is essential.
Common error codes for Toyota Starlet Cross airbag control unit repair
During Toyota Starlet Cross airbag control unit repair, specific error codes occur that indicate direct problems with the control unit or its circuits, such as communication problems or short circuits within the airbag wiring, which require specific diagnosis.
- B1000 → describes communication errors → Indicates internal problems of the airbag ECU
- B1920 → signals short circuit in the circuit of the rear left airbag → cause lies in the circuit of the airbag module, directly controlled by the control unit
- B1921 → shows open circuit rear left airbag → Indicates a wire break in the airbag circuit
- B1922 → identifies short circuit to ground in the rear right airbag circuit → cause is a faulty connection to the vehicle ground
- B1923 → reports short circuit to battery voltage in the rear right airbag circuit → Indicates an inadmissible voltage in the airbag circuit
- B1925 → reports short circuit in the rear right airbag circuit → cause lies in the airbag module circuit
- B1926 → shows open circuit rear right airbag → Indicates a wire break in the airbag circuit
- B1927 → signals short circuit to ground in the rear right airbag circuit → cause is a faulty connection to the vehicle ground
- B1928 → reports short circuit to battery voltage in the rear right airbag circuit → Indicates an inadmissible voltage in the airbag circuit
- B1941 → describes Airbag Crash Sensor #1 circuit open → Indicates an open circuit in the crash sensor signal circuit, relevant to the ECU
What part numbers are available for the Toyota Starlet Cross airbag control unit repair?
For Toyota Starlet Cross airbag control unit repair, the OEM part numbers 89170-10010 and 89170-10040 from Fujitsu are primarily relevant, as these are considered the only verified original parts for the P9 series and must be replaced or repaired in the event of a failure.

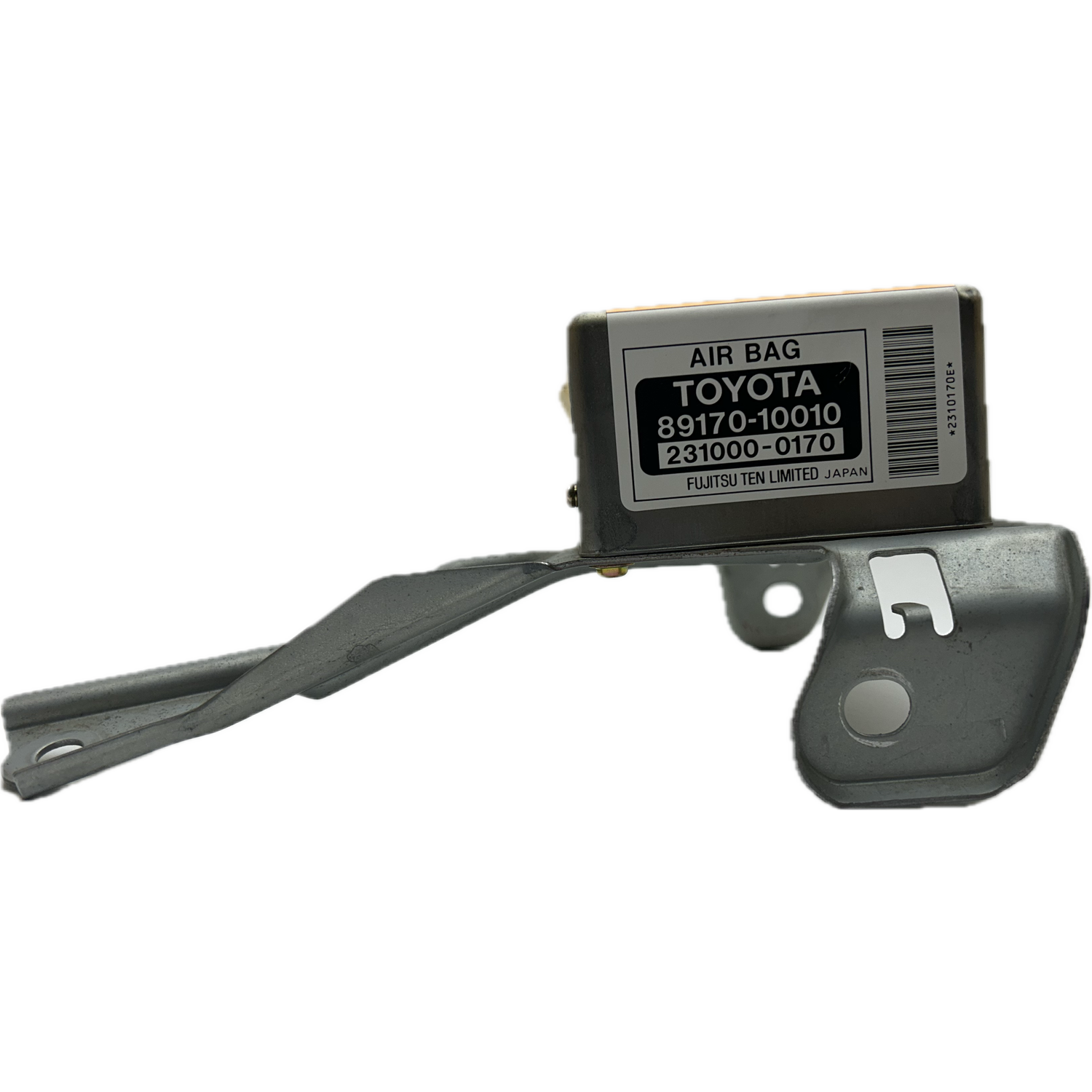

The most common and exact original part number is 89170-10010. This control unit is manufactured by Fujitsu and is specifically designed for the Toyota Starlet Cross (EP91/P9).
An alternative OEM number is 89170-10040, also from Fujitsu. This number may be compatible depending on the specific model year or equipment of the Starlet P9 and should be considered when repairing the Toyota Starlet Cross airbag control unit .
It's important to note that other control units, such as the immobilizer, should not be confused with these airbag control units. A thorough check of the part number is crucial for a successful repair.
