532 airbag control unit fault

What does error code 532 mean in the airbag control unit?

Error code 532, often defined as “Supply Voltage B+” or “Supply Voltage Too Low,” indicates a critical issue with the power supply to the airbag control unit. The unit detects a voltage that is too low or unstable, falling below its operational requirements. As this is a safety‑critical component, the error is permanently stored and cannot be easily cleared.

Technically, the airbag control unit continuously monitors its own supply voltage. If this voltage drops— even briefly—below a specified threshold, error code 532 is logged in the internal fault memory. The system then switches to a safety mode and deactivates the airbag functions to prevent unintended deployments.

This error remains persistent, even after the power supply has stabilized. This safeguard requires professional inspection, as an unstable voltage cannot ensure proper operation in the event of a crash.

The situation becomes particularly concerning when error code 532 occurs in combination with error code 65535. Such a combination almost always points to an internal, irreparable hardware failure within the control unit, frequently triggered by the original undervoltage condition.

How can you recognize error code 532?

The most obvious symptom is the airbag warning light that stays illuminated or flashes intermittently on the instrument cluster. In many cases, the fault memory cannot be cleared using a diagnostic tool. Consequently, the entire airbag system is disabled, offering no protection in the event of a crash.

A typical behavior of the warning light is that it illuminates for a few seconds upon starting the vehicle, briefly goes out, and then remains lit. This indicates a failed self‑test due to the detected voltage fault.

Another characteristic is the persistence of the error. Even after replacing the vehicle battery or resolving an apparent contact issue, the error code remains active in the control unit’s memory, and the warning light stays on. Simple clearing is not possible.

The most severe consequence is the complete deactivation of the passive safety system. Neither airbags nor seatbelt pretensioners will deploy during a collision as long as this error persists.

What are the most common causes of error code 532?

The primary cause of error code 532 is a weak, defective, or recently replaced vehicle battery. Voltage dips during engine start-up or voltage spikes during battery replacement are among the most frequent triggers. Internal defects within the control unit itself—known in certain model series—can also lead to this error.

An aging or faulty battery may cause such a significant voltage drop during startup that the airbag control unit registers it as a fault. Similarly, improper battery replacement can result in voltage spikes that trigger permanent fault logging.

In specific vehicles—particularly the Volkswagen Golf IV equipped with control unit part number 6Q0-909-605-A—a well‑known firmware bug existed. This caused the control unit to become damaged when read using diagnostic tools like VAG-COM, leading to the storage of error code 532. These units were later replaced with the more robust part number 1C0-909-605-A.

Other causes may include mundane contact issues. Corroded or loose connectors at the airbag control unit, damaged cables, or a defective coil spring in the steering wheel can all contribute to intermittent voltage drops.

Finally, vehicle accidents that damage the onboard electrical system can also lead to subsequent power‑supply problems for the airbag control unit, resulting in error code 532.

Which vehicles are affected by error code 532?

Error code 532 occurs across manufacturers, with particular prevalence among brands belonging to the VAG Group. Various models from Audi, Volkswagen, Škoda, and SEAT spanning multiple production years are impacted. Even more exclusive marques like Lamborghini may exhibit this error. At Airbag24, we repair this fault for a wide range of vehicles.

At Airbag24, we have successfully repaired error code 532 for the following models and series:

Audi: A3 (8L, 8P including facelifts), A4 (B5), A6 (4A, C4), A8 (D2, D3 including facelifts), S3 (8P including facelifts), S6 (C4), S8 (D2), RS3 (8PA).

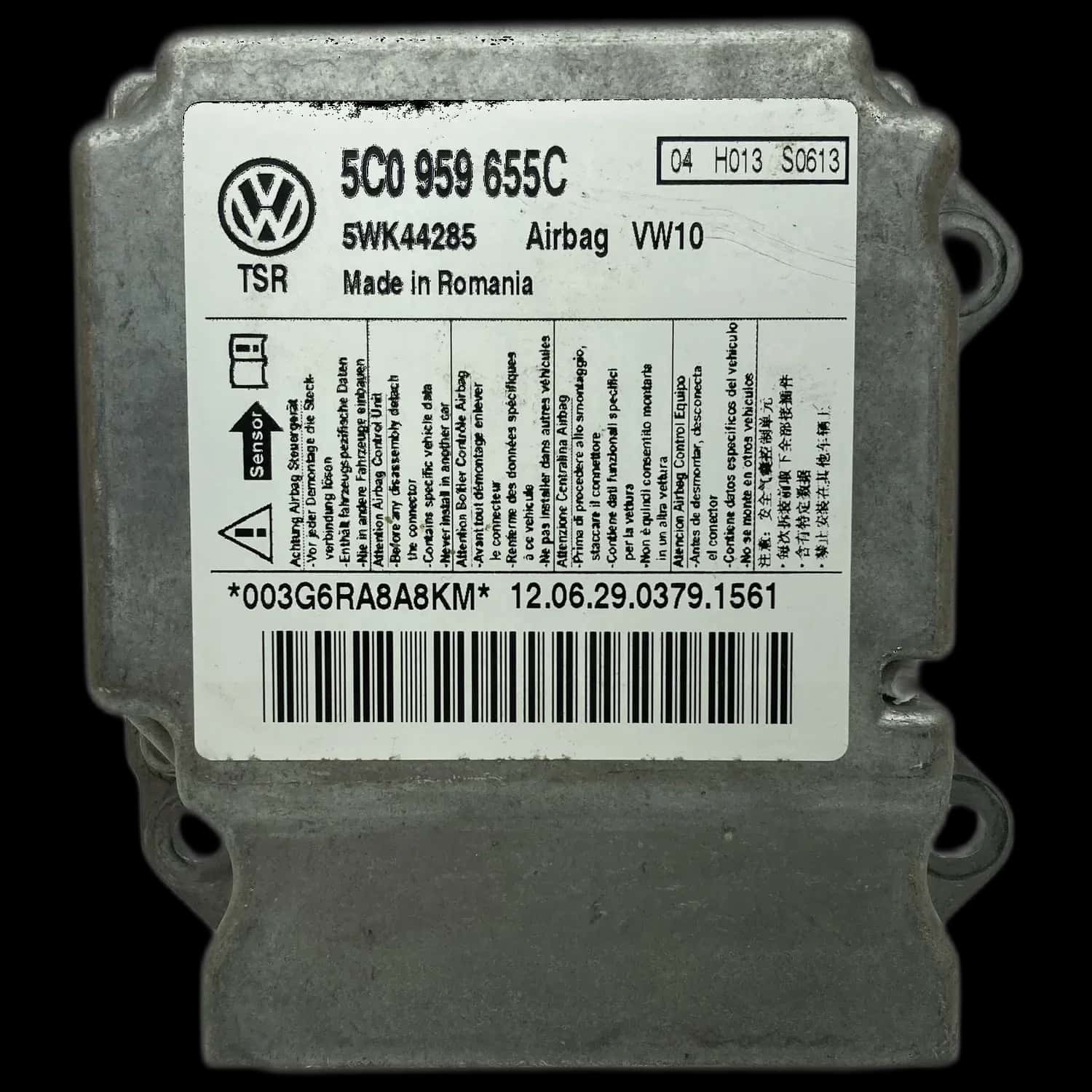

Volkswagen: Golf (Mk1, Mk2, Mk4, Golf 6), Touareg (7L including facelift), Polo.

Škoda: Fabia (2 [5J] including facelift), Superb Combi (Mk4), Felicia Combi (Mk1).

Seat: Ibiza (4 [6J/6P] including facelifts, Style Mk5), Toledo (1 [1L] including facelift).

Lamborghini: Aventador LP700-4 (2011–2017).

How is error 532 professionally repaired at Airbag24?

Professional repair of error 532 involves an in-depth analysis at the electronic level. After sending in the control unit, Airbag24 performs a hardware inspection, reads out the fault memory, and either repairs or replaces the faulty components. The device is then recalibrated and thoroughly tested for full functionality to enable plug-and-play reinstallation.

Once the removed control unit arrives at our facility, it undergoes a meticulous incoming inspection. Using specialized equipment, we establish a connection to the unit to verify permanent error 532 as well as any accompanying errors such as 65535. Caution is essential here, as improper diagnostic attempts on certain control units can exacerbate the issue.

The actual repair takes place directly on the control unit’s circuit board. Our technicians identify and replace defective components responsible for voltage instability. If a known firmware bug is present, the device software is updated, and the persistent error entry is subsequently cleared at the chip level.

Finally, each repaired control unit undergoes a comprehensive functional test in a simulation environment. We ensure that the unit communicates flawlessly and is fully operational. We provide a 12-month warranty on every repair.

Repair or Replacement: Which Is the Better Solution?

For error code 532, repair is usually the far more economical and quicker option compared to purchasing a new part. Not only do you save significantly on costs, but you also avoid the need for time-consuming re-coding of the control unit in your vehicle. Only in cases of severe, irreparable hardware damage is replacement unavoidable.

The biggest advantage of repair is the substantial cost savings—often up to 70% compared to a new control unit from the vehicle manufacturer. Additionally, the original vehicle coding remains intact, meaning the repaired unit becomes fully functional immediately after installation (plug-and-play).

Replacing the control unit becomes necessary when error code 65535 (internal defect) is also present, or if the unit belongs to a known faulty hardware revision, such as part number 6Q0-909-605-A. In these situations, it makes sense to use a certified replacement unit or a newer model to prevent recurrence of the problem.
