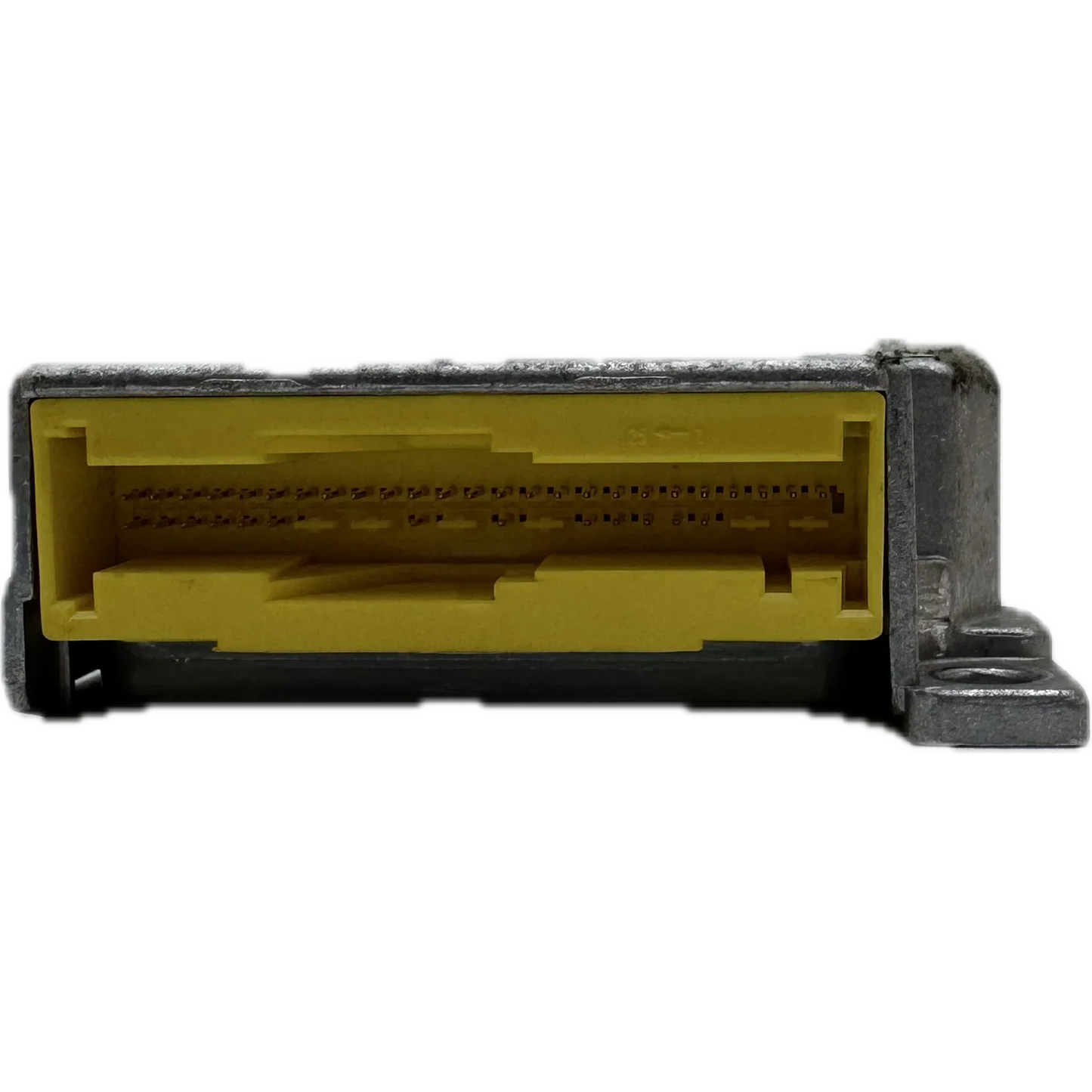

Audi S6 C4 airbag control unit repair

What is an Audi S6 C4 airbag control unit?

The Audi S6 C4 airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It continuously monitors sensors, stores relevant crash data, and ensures the rapid, proper deployment of all airbag modules and seatbelt pretensioners in the vehicle for maximum occupant safety.

This safety-critical electronic module is responsible for controlling and monitoring the entire airbag system in your Audi S6 C4. It ensures that the passive safety devices function reliably and protect lives in an emergency.

Why is the Audi S6 C4 airbag control unit defective?

A defect in the Audi S6 C4 airbag control unit often occurs due to internal memory errors, power supply problems, or faulty control of the airbag warning light. Such failures result in the airbag warning light in the dashboard remaining permanently illuminated, rendering the safety system inoperable.

Internal memory errors, often reported as code 65535, are a primary cause of this control unit's failure. These can be caused by aging components or overvoltage damage.

A supply voltage that's too low or defects in the warning light control system can also indicate a defect in the control unit itself. Such problems require a specialized Audi S6 C4 airbag control unit repair.

Common error codes for Audi S6 C4 airbag control unit repair

During Audi S6 C4 airbag control unit repairs, specific error codes occur that directly indicate problems with the airbag control unit itself. Precise reading of these codes enables a quick diagnosis of the control unit defect and is crucial for a successful repair of the entire airbag system.

• 65535 → Internal control unit memory error → Cause: Defect in the internal data memory of the airbag control unit, often due to age or after an accident.
• 00588 → Airbag igniter; driver side (N95) resistance too high or too low → Cause: Resistance value outside the tolerance on the driver airbag igniter, may indicate internal control unit or wiring problems.
• 01025 → Fault lamp control defective → Cause: Defect in the control of the airbag warning lamp, such as an open circuit or a short circuit to ground.
• 00532 → Supply voltage B+ too low → Cause: Too low supply voltage directly at the control unit, indicates internal problems in the power supply unit.

What part numbers are available for the Audi S6 C4 airbag control unit repair?

For the Audi S6 C4 airbag control unit repair, the manufacturer part numbers 8A0 959 655 B, 8A0 959 655 C and 4A0 959 655, and the Bosch supplier part number 0285001037, are stored for this product. They belong to airbag control units of this model.

Additionally, the Bosch supplier part numbers 028 500 1038 and 028 500 1106 are stored.

The part number is printed on the label of the airbag control unit and can be stated in the repair order.

Technical specifications and compatibility of the Audi S6 C4 airbag control unit

The airbag control unit for the Audi S6 C4 is tailored to specific vehicle models and models to ensure the proper functioning of the passive safety system. It is a highly sensitive module that significantly influences the vehicle's performance and safety and takes specific engine and transmission codes into account.

This module is primarily designed for the Audi S6 C4 Avant 20V Turbo Quattro with engine code AAN and a 6-speed manual transmission. It is compatible with models from approximately 1994 to 1997/98, including the A6/S6 C4 (Type 4A) model series.

Compatible control units can also be used in other Audi A6 C4 models of these years. A precise check of the part number against your chassis number is always essential before installation or an Audi S6 C4 airbag control unit repair.

Audi S6 C4 airbag control unit: installation, function and safety aspects

The correct function and professional installation of the Audi S6 C4 airbag control unit are of utmost importance for occupant safety, as it must deploy the airbags and seatbelt pretensioners instantly in an emergency. For this reason, all work on the airbag system may only be performed by qualified, appropriately trained personnel to ensure maximum safety.

The control unit continuously monitors the vehicle's electronic crash sensors and processes incoming signals in the event of an impact. Within milliseconds, it initiates the deployment of the airbags and seatbelt pretensioners.

Typically, the control unit in the Audi S6 C4 is located in the front center console, usually under the ashtray area, secured with several screws. Removal often requires removing adjacent components such as the climate control units or the ashtray.

For safety reasons, the vehicle battery must always be disconnected before performing any work on airbag systems to prevent accidental deployment. After a successful Audi S6 C4 airbag control unit repair, the error logs are erased and any crash data is removed to deactivate the airbag warning light and restore the system to full functionality.
