B1005 airbag control unit fault

What does error code B1005 mean in the airbag control unit?

Error code B1005 indicates an internal fault in the airbag control unit. The causes range from invalid configuration data and failed self-tests to specific circuit faults, such as those affecting the seatbelt pretensioner. An electronic repair of the control unit is unavoidable to resolve the issue, as the fault lies at the hardware level.

Technically speaking, DTC (Diagnostic Trouble Code) B1005 signifies that the internal diagnostics of the Airbag Control Unit (ACU) have detected a critical error. This condition prevents the entire restraint system from functioning correctly, as the module can no longer reliably perform its primary task—monitoring sensors and triggering airbags and seatbelt pretensioners in a timely manner.

The precise meaning of the code varies significantly depending on the manufacturer. For instance, on a Mercedes-Benz ML W166, it points to corrupted configuration data stored in memory, while on a Nissan Primastar X83, it signals a fault in the seatbelt pretensioner circuit. In models like the Alfa Romeo 145 930, B1005 means the control unit’s internal self-test could not complete successfully.

How do you recognize error B1005?

The primary symptom of error B1005 is a permanently illuminated airbag warning light on the instrument cluster. Often, conventional diagnostic tools cannot clear this error code because the control unit remains in a protected mode due to the internal fault until the root cause is fixed.

The airbag warning light illuminates immediately upon turning the ignition on and does not extinguish after a few seconds as usual. This is a clear indication that the system has detected a serious malfunction and will be inoperable in the event of a crash.

Another telltale sign is the persistence of the error. Workshops frequently find that attempts to erase the fault memory fail. Tools such as MultiEcuscan (MES), commonly used on Italian vehicles, often cannot remove code B1005, pointing to a deep-seated hardware or data integrity issue within the control unit itself.

What causes error code B1005?

The main cause of B1005 is internal electronic faults within the airbag control unit. These include damaged memory chips with corrupted configuration data, errors in the self-test routine, or specific hardware malfunctions such as faulty circuits for components like seatbelt pretensioners or impact sensors. External factors are less frequently responsible.

A key reason is damage to the configuration data stored on the control unit’s EEPROM chip. This can result from aging, voltage fluctuations, or other electronic disturbances. The control unit then recognizes the data as invalid and reports error B1005, as seen in certain Mercedes-Benz models.

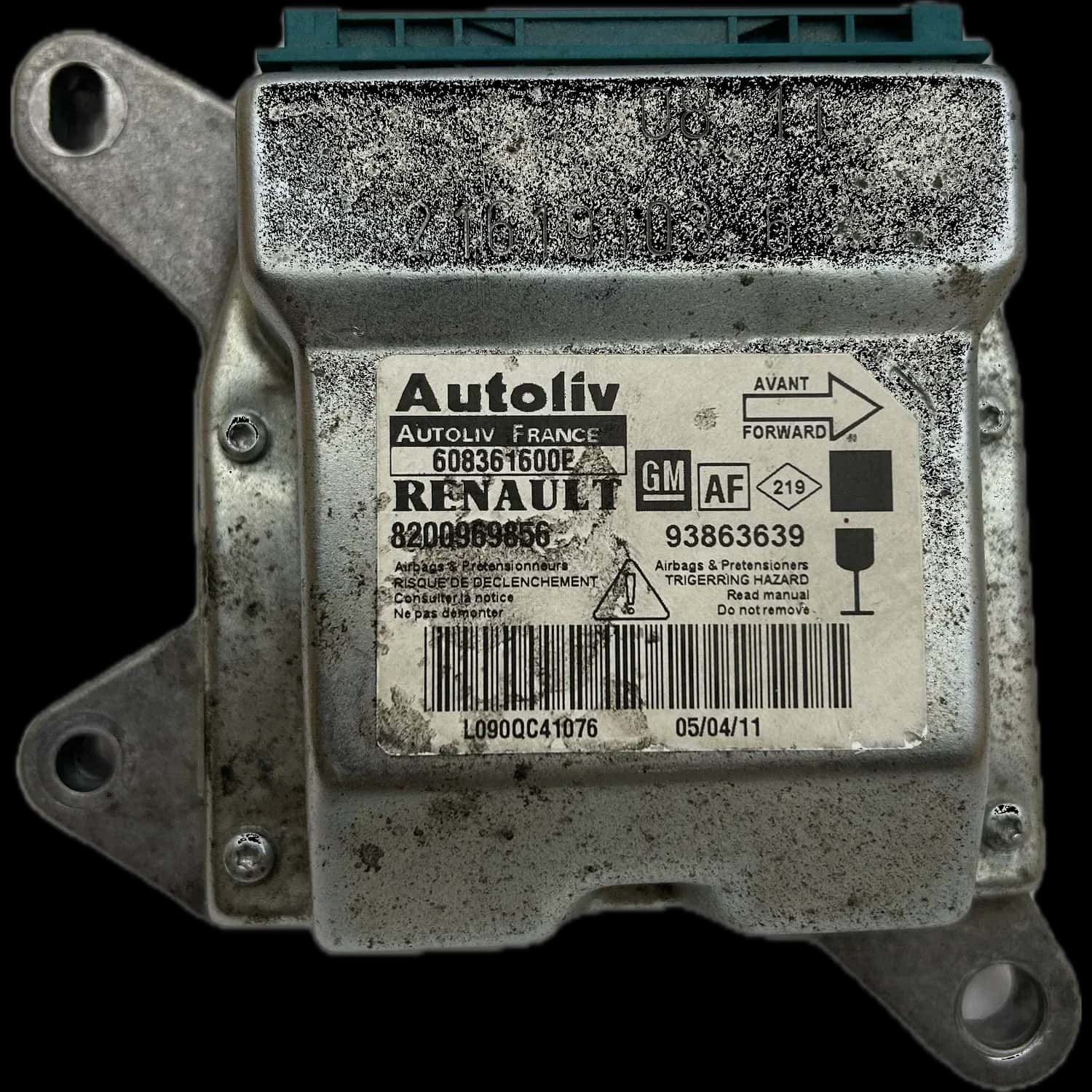

Defective circuits directly monitored by the control unit represent another common cause. On vehicles like the Nissan Primastar X83, B1005 specifically refers to a fault in the seatbelt pretensioner circuit.

In some cases, this error occurs alongside other codes. For example, on Alfa Romeo Brera or 159, B1005 is often diagnosed together with B1014 (passenger airbag switch). Meanwhile, on a Jaguar XK, the specific variant B1005-96 may indicate a defective left-side impact sensor, further refining the diagnosis.

Which vehicles experience error B1005?

Error code B1005 appears across a wide range of manufacturers, including Mercedes-Benz, Volkswagen, Alfa Romeo, Nissan, and Peugeot. Various models and series are affected, underscoring the manufacturer-specific nature of the code. At Airbag24, we successfully repair this fault for a broad spectrum of vehicles.

At Airbag24, repairs for error code B1005 are available for the following models:

Mercedes-Benz: SL R231, GLB X247, ML W166, EQE X294

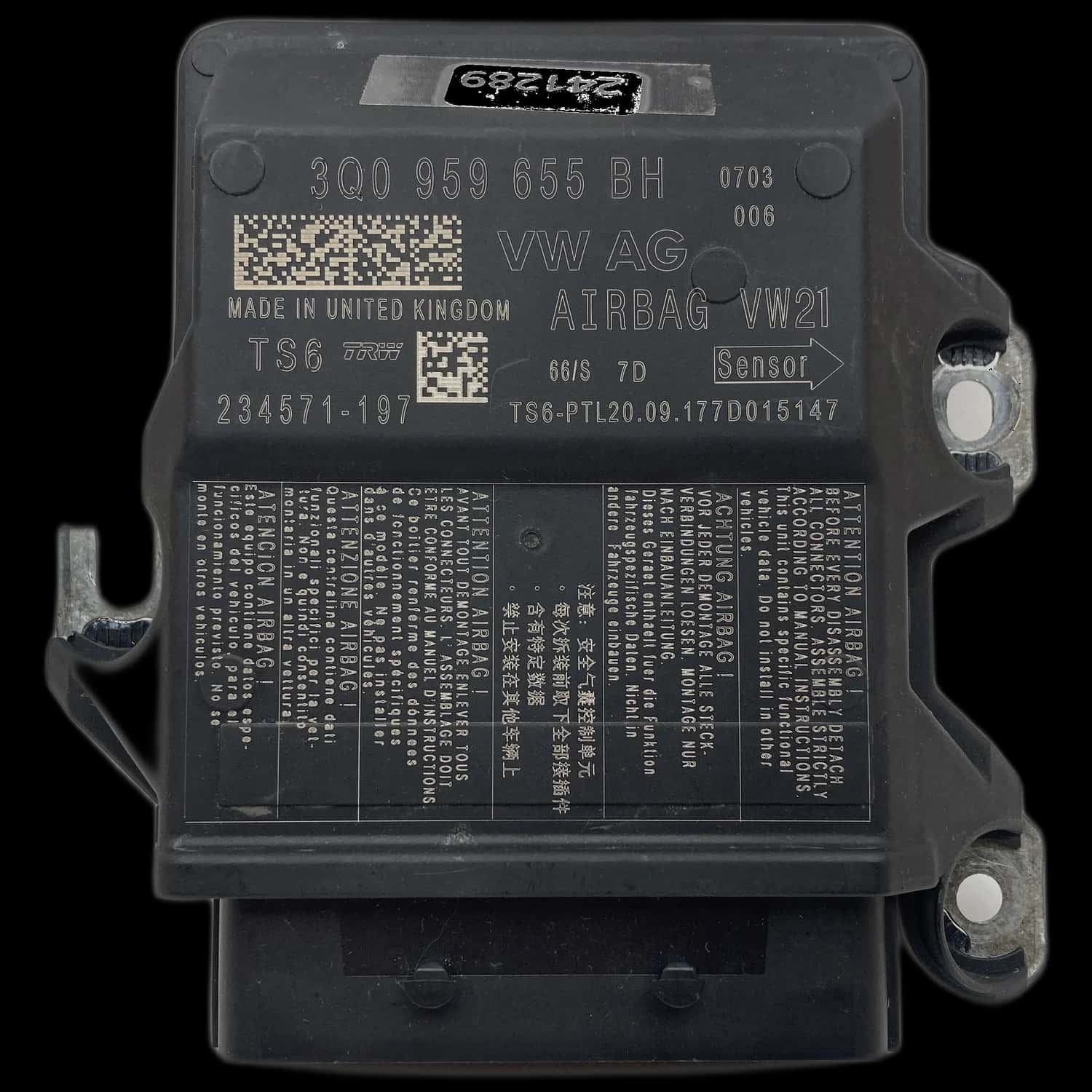

VAG Group: Volkswagen Golf GTI Mk5, Skoda Kodiaq, Skoda Praktik, Seat Leon X-Perience Mk3

Stellantis (including FCA): Alfa Romeo 145 930, GT 937, Giulia GTA 952, Fiat Strada 138, Lancia Flavia, Delta S4, Maserati Biturbo, Chrysler Voyager, Sebring, Concorde, Cirrus, Dodge Challenger, Durango, Grand Caravan, Jeep Grand Cherokee WK2, Liberty KJ, Peugeot 206 RC & SW

Additional European brands: Renault Mégane RS, Nissan Primastar X83, Dacia Solenza, Logan, Duster, Jaguar F-Pace, Land Rover Defender 90, Range Rover L460, Discovery, Bentley 3 Litre, Continental GTC, Rover 100, 25, 75, 800, Smart Fortwo, Crossblade, Porsche 911, Panamera, Lamborghini Huracán, Ferrari California, 575M

American brands: Chevrolet Malibu, Suburban, Monte Carlo, Bolt EV, Trax, Camaro SS, Hummer HMMWV, Pontiac Grand Am, G6, Grand Prix, Aztek, Vibe, Saturn LW, Ion, Relay, Tesla Model Y

Asian Brands: Honda HR-V, Passport, Legend, Clarity, Hyundai Porter, Infiniti M45, Q45, Q60, Mazda3 BL, RX-7 FD, Mitsubishi Delica, eK Sport, Nissan Sentra, Skyline, Subaru Legacy, Forester, Pleo, Suzuki Wagon R, Solio, Carry, Toyota Corolla E120, Avalon, Supra, Venza, Tacoma, Sienna, Daewoo Nubira, Damas, Leganza, Daihatsu Terios, Storia, Esse

How is Error B1005 Professionally Repaired?

Repair of Error B1005 involves targeted restoration of the electronics in the removed airbag control unit. At Airbag24, defective internal components such as memory chips are analyzed, and faulty configuration data or self-test routines are restored. This preserves the original device and avoids the need for an expensive replacement.

The process begins with the proper removal of the control unit, which—depending on the model—is located beneath the rear seat, in the footwell, or in the center console. Before removal, it’s advisable to disconnect the vehicle battery for at least 10 minutes and, as a preliminary diagnosis, clean the connectors under the seats with contact spray and inspect the seatbelt buckles. In rare cases, this may already resolve the issue.

Upon submission to Airbag24, a detailed analysis of the control unit’s electronics is performed. Technicians identify the root cause of the fault—whether it’s a defective memory chip or corrupted firmware—and address it at the component level. This is a cost-effective solution, as the original part number and vehicle configuration remain intact.

Following successful repair and return shipment, the control unit is reinstalled in the vehicle. In most cases, the airbag warning light extinguishes within about three seconds after turning on the ignition. For persistent issues, especially in Alfa Romeo vehicles, a professional reset of the fault memory may be required. Airbag24 provides a 12-month warranty on all repairs.
