B1600 (control unit defective) airbag control unit fault

What does error code B1600 mean?

Error code B1600 indicates a critical, general internal fault in the airbag control unit. This defect is typically hardware-related and causes the control unit to no longer be able to guarantee its safety functions, often entering a locked state to prevent malfunctions during an emergency.

Technically speaking, the Supplemental Restraint System (SRS) detects a severe system malfunction directly within the airbag module. Code B1600 is not specific to a single component but points to an issue in the central processing unit or the memory modules of the control unit.

Once this error is active, the SRS warning light on the instrument panel illuminates. Clearing the fault memory using conventional diagnostic tools is usually impossible, as it involves a permanent, hardware-level defect.

How can you recognize error B1600?

The primary symptom of error B1600 is a continuously illuminated or intermittently flashing SRS airbag warning light. Often, no diagnostic connection to the control unit can be established, and the error cannot be cleared from the fault memory. Accompanying errors such as B1003 or B2D92 frequently occur as well.

The most obvious sign is the activated SRS warning light, indicating to the driver that the airbag system is not operational and may fail to deploy in the event of a crash.

Another critical symptom is complete loss of communication. Workshops report that diagnostic equipment can no longer access the airbag control unit, making further analysis difficult.

This error rarely occurs in isolation. Additional codes are often stored in the fault memory, pointing to potential root causes, including B1003 (low supply voltage), B119C/B119E (issues with information from the ignition switch), B1186 (missing vehicle speed signal), or the particularly critical code B2D92 (severe hardware damage).

What causes error code B1600?

The main causes of error code B1600 include voltage anomalies such as undervoltage or overvoltage, often triggered by a deeply discharged battery followed by jump-starting. Other triggers are crash data stored in the control unit after an accident or age-related wear of internal electronic components.

A common cause is undervoltage, for example, due to an empty vehicle battery. When the vehicle is then jump-started, voltage spikes can occur, permanently damaging the sensitive electronics inside the control unit.

Similarly, general overvoltage in the vehicle’s electrical system can lead to irreparable damage to internal components, triggering error B1600.

After a vehicle accident, so-called crash data is stored in the control unit’s memory. Even if no external damage is visible, this data record can create a permanent internal fault condition like B1600, locking the device.

Over time, aging and wear of microprocessors, memory modules, or other components on the circuit board can also result in this internal fault. Less frequently, issues with the CAN bus connection to the ignition switch or other systems may play a role.

Which vehicles are affected by B1600?

Error code B1600 appears across many manufacturers, with a strong focus on Mercedes-Benz, BMW, and Volkswagen. However, models from Opel, Renault, Peugeot, Fiat, and numerous other brands can also be impacted. Repairs are possible for most mainstream vehicle models.

At Airbag24, we repair error code B1600 for a wide range of models. The following list provides a detailed overview of the affected vehicles we know of:

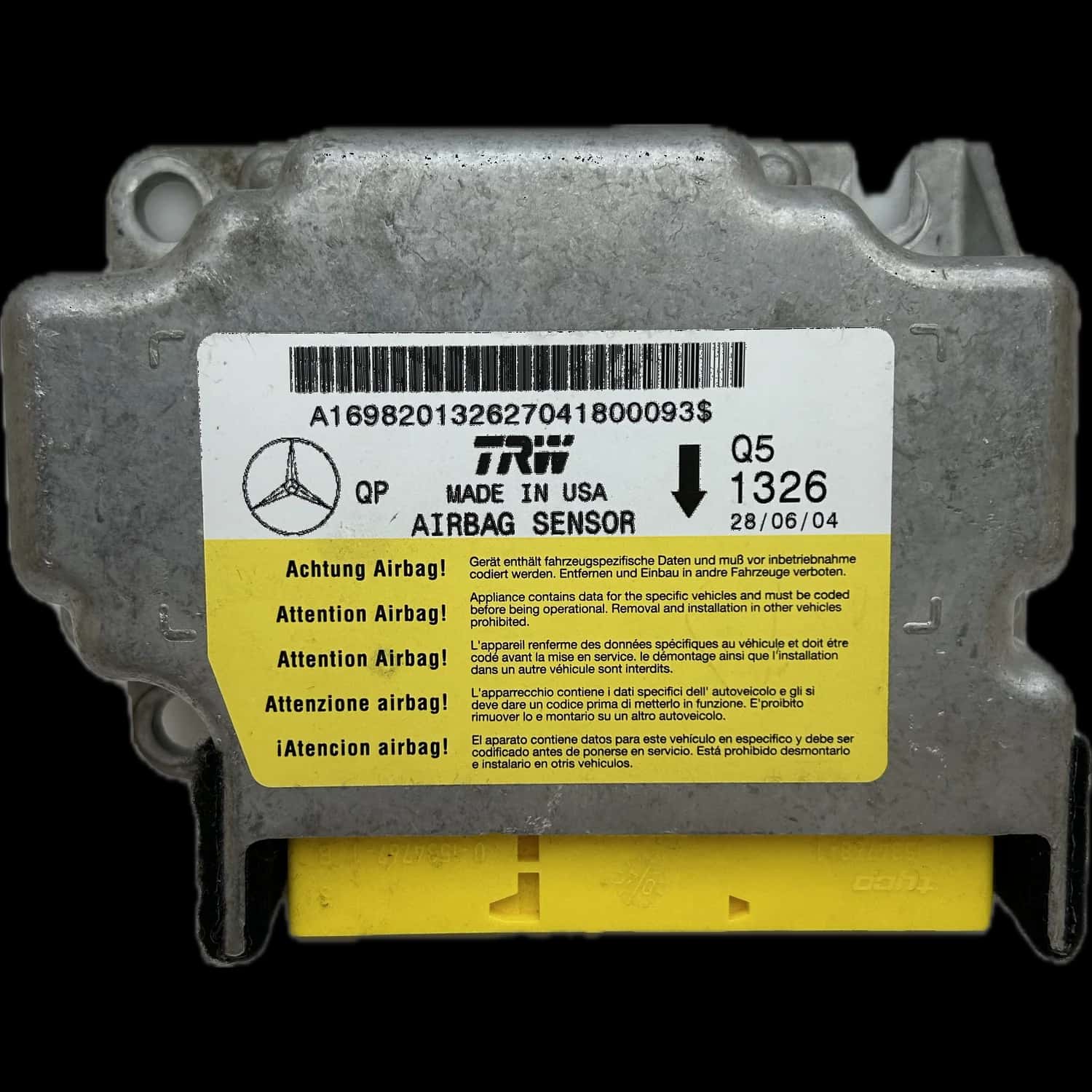

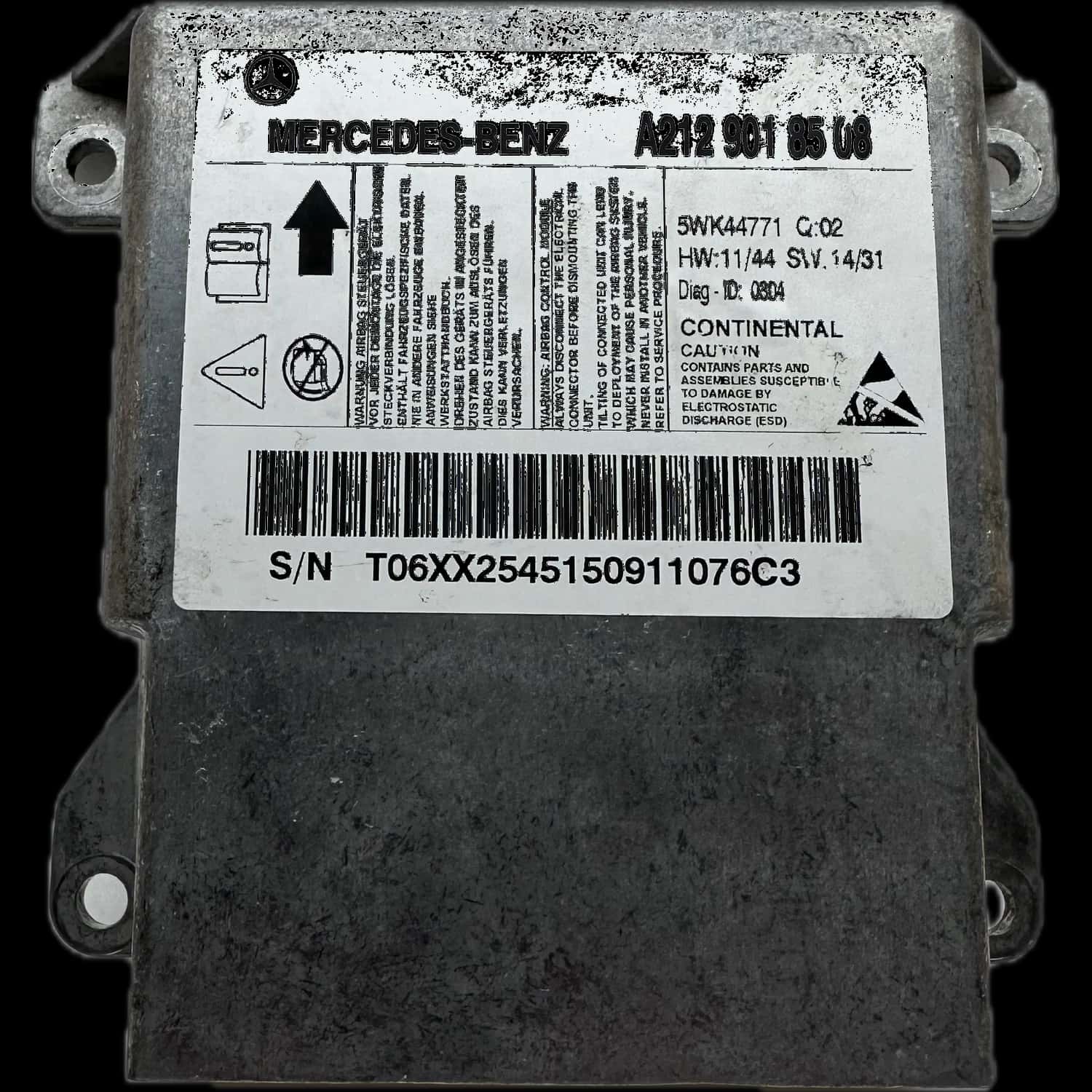

Mercedes-Benz: A-Class (Z177), B-Class (W245), C-Class (W205, A205), E-Class (W124, W210, W211, W213, W214, S124, S212, C207, C238, A207), S-Class (W140, W220, W222, C140), SL (R107), SLS (C197), GLK (X204), GL (X164), V-Class (W639), Vito (W447), Sprinter (W906), EQA (H243).

BMW: 5 Series (F11), X1 (E84), X5 (G05), iX1 (U11), M6 (E63).

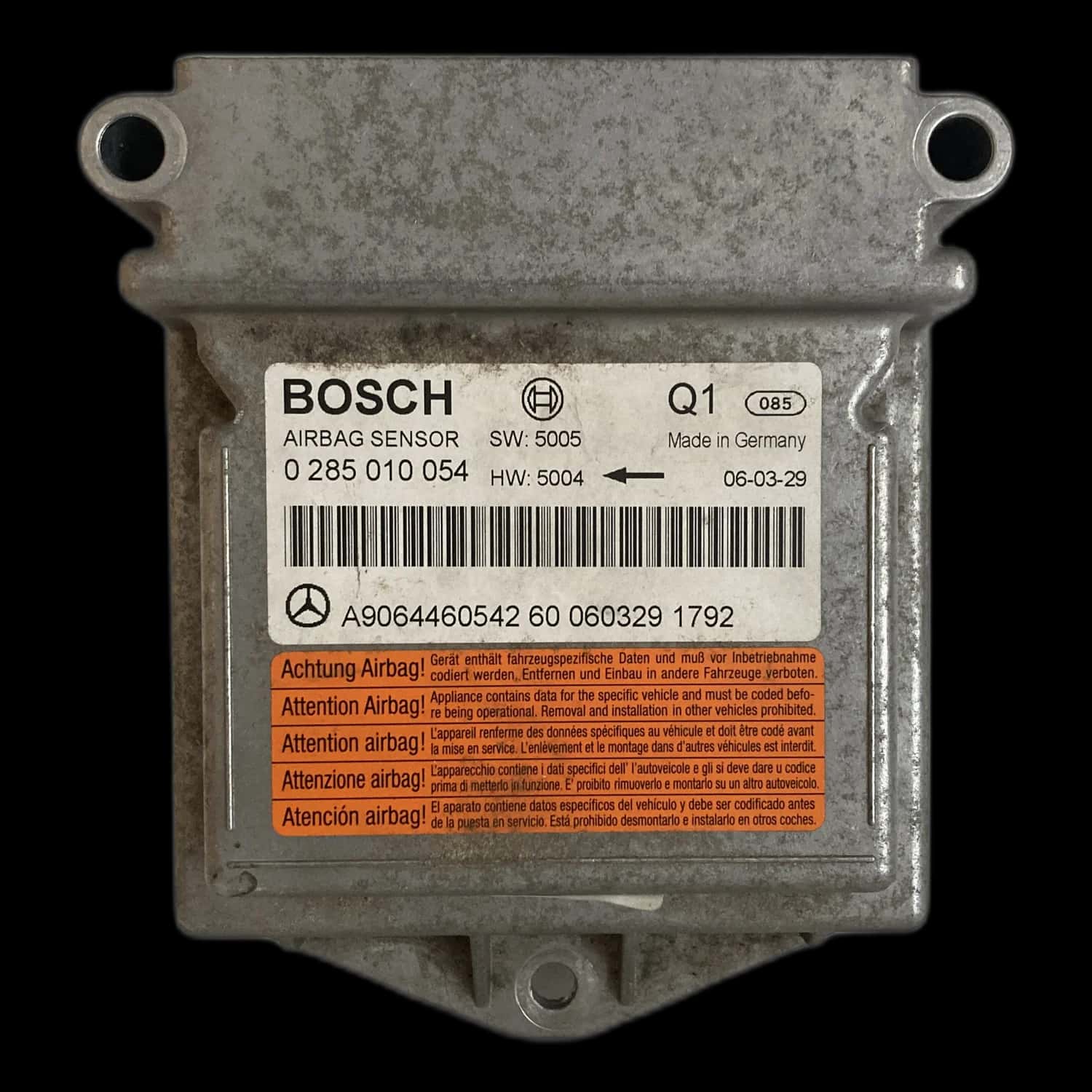

Volkswagen: Crafter (2E, SY, SZ), ID.3 (E1), ID.5 (E2).

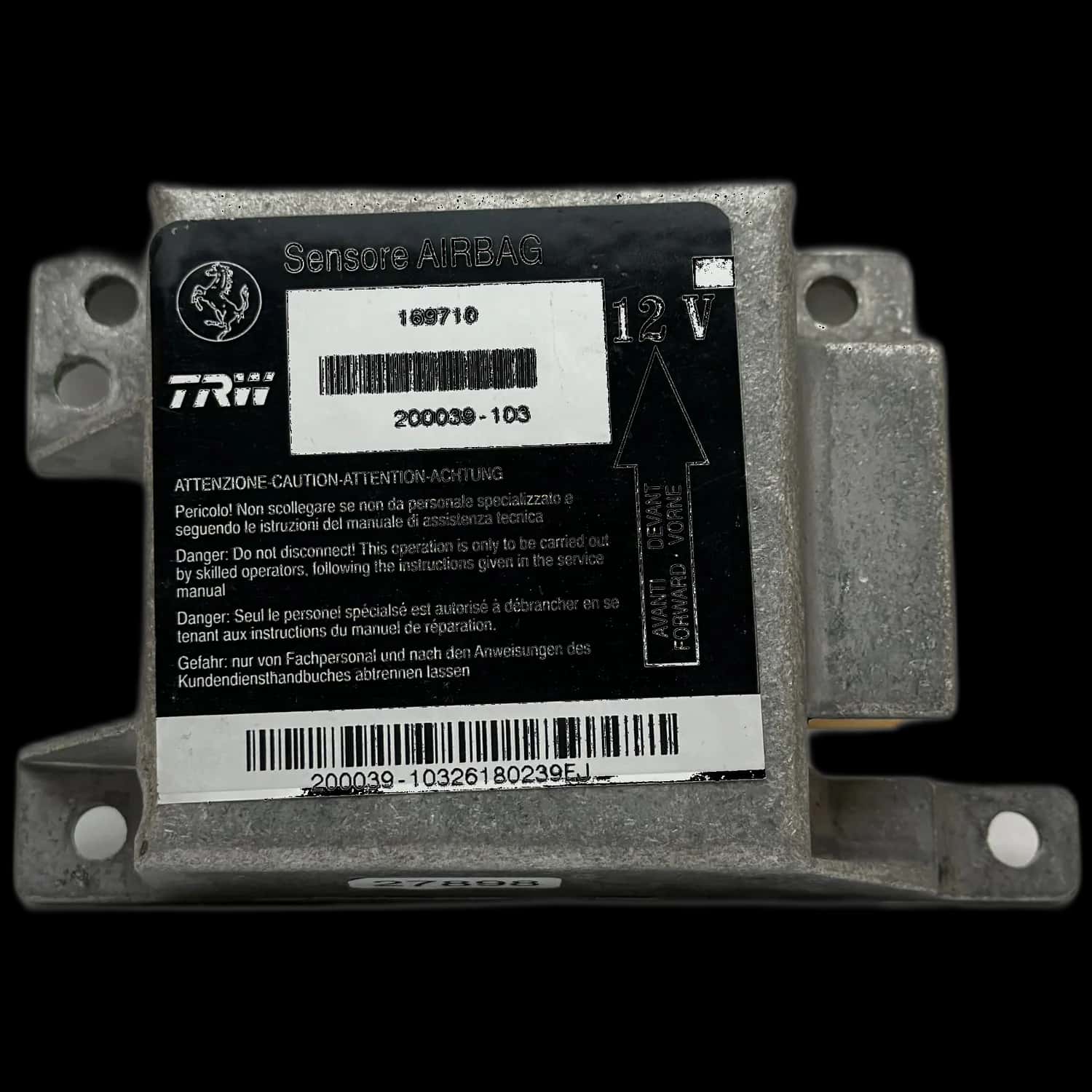

Other manufacturers: Opel Crossland X, Renault Zoe II, Peugeot (305 II, 307, 1008), Citroën (Xsara, Xantia, C4 VTS), Fiat (Panda, Albea, Croma, Uno Turbo), Skoda Kamiq, Alfa Romeo 90, Lancia (Astura, ECV1), Maserati GranCabrio, Chrysler New Yorker, Dacia (1310, 1304, Sandero), Daewoo Veritas, Daihatsu (Mira, Atrai, Thor, Mira Tocot, Delta), Dodge (Charger, Ram, Diplomat, 400, Challenger, Viper), Ferrari (575, F355, Monza), Hummer (EV SUV, HMMWV), Hyundai (Azera, Kona, Starex, Staria), Infiniti ESQ, Iveco Irisbus, Mazda (CX-5, BT-50), Lexus RZ, Land Rover Range Rover Evoque, Lamborghini Huracán, Kia (Cerato, Sedona), MINI (John Cooper Works, Cooper SD Clubman, One Clubman), Mitsubishi (Galant, Outlander, eK Cross, Xpander), Nissan Titan, Porsche (911, Boxster, Panamera, Taycan), Pontiac Bonneville, Rolls-Royce Ghost, SsangYong (Rexton, Kyron, Rodius), Subaru (Impreza, Forester, Baja, Chiffon), Suzuki Swift, Tesla Model 3, Toyota (Vitz, Corolla, Auris, Avensis, Avalon, Supra, Celica, GR86, Prius, Land Cruiser, Venza, Tacoma, Tundra, Sienna, Previa, HiAce, Innova, Urban Cruiser, Hyryder, Platz).

How does the repair process work at Airbag24?

The professional repair of fault B1600 involves a precise diagnosis to identify the internal defect. Depending on the cause, stored crash data is then erased using specialized software, or defective electronic components on the circuit board are replaced. Following successful restoration and final testing, the control unit is fully functional again.

Before removing the control unit, it is advisable to read out and document the fault memory. This ensures that fault B1600 is the primary issue and avoids unnecessary replacement of expensive components.

After submission to Airbag24, each control unit undergoes an initial inspection for accurate fault identification. Our technicians examine the circuit board for damaged components and verify the contents of the memory.

The actual repair is performed at the component level. If crash data is the cause, it is completely cleared. For hardware defects—often indicated by code B1600—the affected microchips or other electronic parts are expertly replaced.

Following restoration, the control unit is thoroughly tested to ensure proper functionality. You receive a plug-and-play component that requires no complicated re-coding in the vehicle, resulting in significant cost savings compared to a new part. We provide 2 years' statutory liability for defects on all repairs.
