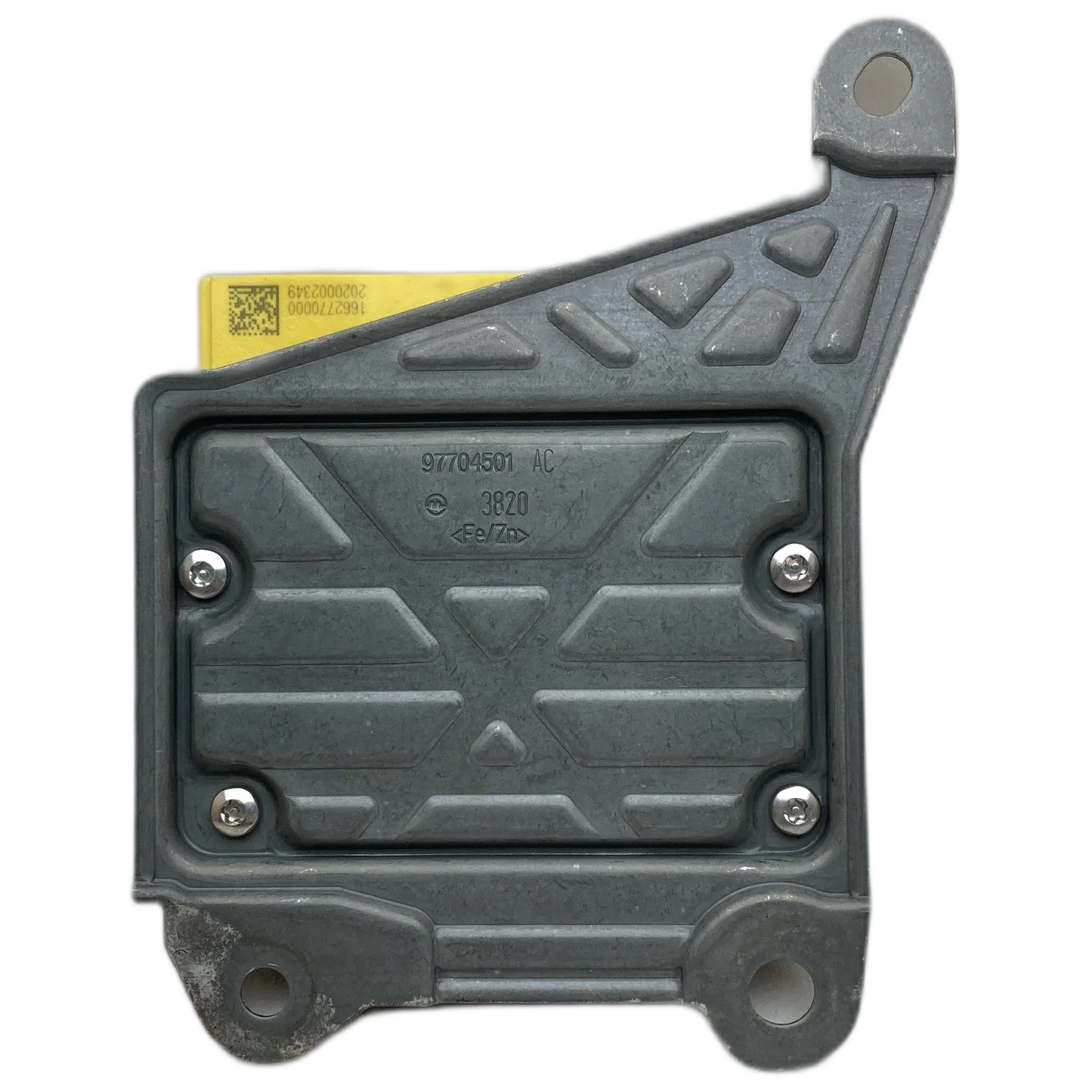

Renault Zoe II airbag control unit repair

What is a Renault Zoe II airbag control unit?

The Renault Zoe II airbag control unit is the central safety unit that specifically activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors relevant sensors, stores important crash data, and ensures the proper functioning of all airbag modules at all times for maximum occupant protection.

This module is the control center of the passive safety system in your Renault Zoe II. It is responsible for processing data from acceleration sensors and crash sensors.

In the event of a collision, the control unit deploys the airbags and tightens the seatbelts to provide optimal protection for the occupants. Proper functioning is essential for your safety.

Why is the Renault Zoe II airbag control unit defective?

A Renault Zoe II airbag control unit can fail for a variety of reasons, often after an accident due to stored, indelible crash data. Internal hardware errors, water damage, or problems communicating with other vehicle components can also lead to failure, requiring specialized repair or replacement of the module.

After an accident, the control unit stores indelible crash data that blocks the system. This causes the airbag light on the dashboard to remain permanently illuminated.

Internal component failure or water ingress can also lead to hardware defects. Such damage makes a professional Renault Zoe II airbag control unit repair essential.

Common error codes for Renault Zoe II airbag control unit repair

When repairing a Renault Zoe II airbag control unit, specific error codes may occur that directly indicate problems with the module itself. These codes often signal internal defects, communication problems, or stored crash data that prevent the system from functioning and require professional diagnosis.

• B1000 → Control unit communication error → The control unit cannot communicate with other vehicle components, often due to an unstable bus connection.
• B1050 → Internal control unit error → A hardware defect in the control unit itself, possibly caused by aging or environmental influences.
• B1150 → Crash data stored → After an impact, irreversible crash data was stored in the control unit's memory, which requires a specialized reset service.
• B1210 → Control Module Error – Internal Diagnosis Failed → The module cannot successfully complete its internal self-test, indicating a serious internal defect.
• B1500 → Airbag control unit initialization error → The control unit cannot initialize the airbag system correctly after the ignition is switched on.
• B1600 → Communication error with airbag sensors → The control unit cannot correctly address the connected airbag sensors or query their status without the sensors themselves being defective.

What part numbers are available for the Renault Zoe II airbag control unit repair?

For the Renault Zoe II airbag control unit repair, the manufacturer part numbers 285552502R, 985104074R and 985107593R are listed for this repair product; they belong to airbag control units of this model and should be compared with the label of the faulty unit before you submit your repair order.

The supplier part numbers A2C80612609 and A2C85840002 are listed as well, and both belong to airbag control units of this model.

The part number is printed on the label of the airbag control unit and can be stated in your repair order.

Technical specifications of the Renault Zoe II airbag control unit

The Renault Zoe II airbag control unit serves as the central control unit for the entire occupant protection system. It processes data from acceleration sensors, controls the deployment of airbags and seatbelt pretensioners, and continuously monitors system readiness to ensure precise and reliable response in an emergency.

The control unit is powered by the 12-volt vehicle battery and communicates with all relevant components via the wiring harness. It is the control center that evaluates all safety-relevant data.

Special yellow connectors with short-circuit monitoring clips ensure electrical safety and prevent accidental airbag deployment. Integrated software also allows the passenger airbag to be activated or deactivated.

Compatibility: Which models is the Renault Zoe II airbag control unit suitable for?

The Renault Zoe II airbag control unit is specifically designed for the Renault ZOE II series (Zoe BFM/ZE 50). It is typically compatible with vehicles built between 2012 and 2019, although exact specifications and features must always be verified to ensure a 100% fit.

It fits four-door, front-wheel-drive hatchback models, especially electric versions with common engines such as 46 kW or 63 hp. The control unit is designed for standard equipment that includes four airbags—front and side airbags for the driver and front passenger.

A precise match between the chassis number and model variant is essential before any purchase. This ensures that the replacement part is a perfect fit for your vehicle and enables a successful Renault Zoe II airbag control unit repair.

Functionality and features of the Renault Zoe II airbag control unit

The Renault Zoe II airbag control unit provides comprehensive control of the passive safety system. It detects collisions using sensor data, deploys airbags and seatbelt pretensioners, enables deactivation of the passenger airbag, and continuously monitors all components for maximum safety and reliability during vehicle operation.

In the event of a sufficiently severe collision, the control unit precisely evaluates the inputs from the acceleration and crash sensors. It then controls the explosive deployment of the driver and front passenger airbags and the activation of the seat belt pretensioners.

It continuously checks the entire airbag system for errors or interruptions using its integrated diagnostic function. Malfunctions are immediately signaled to the driver via warning displays in the instrument cluster.

Installation position and connections on the Renault Zoe II airbag control unit

The Renault Zoe II airbag control unit is typically located safely in the center console or under the dashboard. It features special yellow multi-connectors with coded gold-pin contacts that ensure a precise and secure connection to the airbag sensors, airbags, seatbelt pretensioners, and the vehicle bus system.

The installation location is chosen to ensure optimal protection against moisture and mechanical influences. Installation is achieved using specific brackets and seamless integration into the existing vehicle electronics system.

The yellow airbag connectors are mechanically coded to ensure correct polarity and prevent misconnections. A ground contact in the connector further ensures the electrical safety of the entire airbag system.

Special features of the Renault Zoe II airbag control unit repair

Repairing a Renault Zoe II airbag control unit requires specialized expertise, particularly when it comes to erasing crash data and correcting internal hardware errors. Due to varying software versions and strict safety regulations, repair or replacement should only be performed by trained personnel to ensure proper functionality.

Depending on the Renault ZOE trim level, different software versions may be installed in the airbag control unit. This affects, for example, support for manual deactivation of the passenger airbag.

Work on the airbag system, whether repair, diagnosis, or replacement, is strictly regulated. Improper handling can endanger the vehicle's safety and should therefore only be performed by certified specialists in a workshop.
