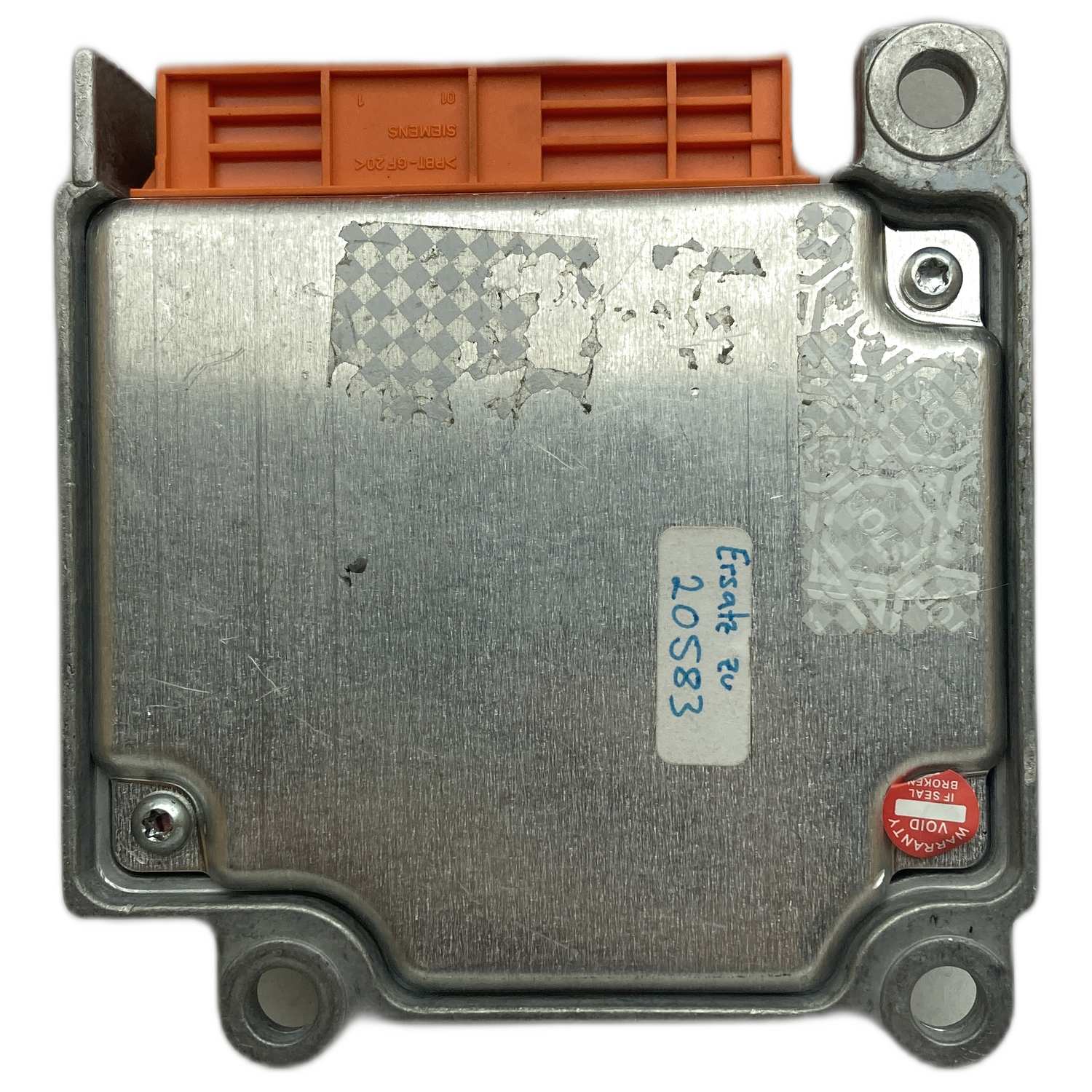

What is an Alfa Romeo 156 932 airbag control unit?
The Alfa Romeo 156 932 airbag control unit is the central safety unit in the vehicle, activating all occupant restraint systems in the event of an accident. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of all passive safety systems for the driver and passengers.
This electronic control unit is responsible for monitoring and controlling all airbag components as well as the seat belt pretensioners.
It analyzes signals from acceleration sensors and other crash sensors in order to trigger the protective systems in a flash if necessary.
Why is the Alfa Romeo 156 932 airbag control unit defective?
An Alfa Romeo 156 932 airbag control unit may be defective because crash data was stored after an accident, requiring a reset or replacement. Internal electronic errors such as cold solder joints, memory problems, or voltage spikes can also lead to failure, necessitating specialized repair or replacement of the defective module.
After an impact, the control unit stores indelible crash data, which causes the airbag warning light to illuminate permanently.
Internal memory errors or communication problems are common causes of module failure or malfunction.
Faults in the power supply or aging-related problems with internal soldering points can also cause the control unit to break down and require professional repair.
Common error codes for Alfa Romeo 156 932 airbag control unit repair
Common error codes for a faulty Alfa Romeo 156 932 airbag control unit indicate internal problems that require specific diagnostics. Codes like B1000 or B1001 signal communication or memory errors that require repair or replacement of the control unit to restore full airbag functionality.
- B1000 → Communication error → The control unit cannot communicate with other systems.
- B1001 → Internal memory error → The device's EEPROM or flash memory is corrupted.
- B1002 → Internal sensor processing error → Internal sensors of the control unit are not working correctly.
- B1010 → Control unit self-test failed → The control unit could not pass the internal system check.
- B1020 → Voltage fluctuation in the control unit → Problems with the power supply affect the function.
- B1030 → Faulty internal wiring / internal malfunction → Defects in the internal circuit.
- B1040 → EEPROM data error in the control unit → Damaged or invalid data in the non-volatile memory.
- B1050 → Control unit processor error → The main processor of the airbag module is defective.
- B1060 → Memory programming error → Problems writing or reading firmware.
- B1070 → Internal error sporadic (often cold solder joints) → Temporary interruptions due to loose connections.
What part numbers are available for the Alfa Romeo 156 932 airbag control unit repair?
For the Alfa Romeo 156 932 airbag control unit repair, various OEM part numbers are relevant to ensure an exact fit for the 932 series. It is crucial to use one of these original Alfa Romeo numbers to ensure the compatibility and functionality of the new or repaired control unit.
The following original Alfa Romeo part numbers are 100% compatible with the Alfa Romeo 156 (932 Series) airbag control unit:
- 60680213
- 60669250
- 46449690
- 46480307
- 46521529
- 46550991
- 60512848
These numbers have been verified from multiple trusted sources and match models from 1997 to 2005/2006.
Technical specifications and compatibility of the Alfa Romeo 156 932 airbag control unit
The Alfa Romeo 156 932 airbag control unit is designed for sedan and sportwagon models from 1997 to 2005, regardless of engine. It communicates via CAN bus and is critical for activating the occupant safety systems and storing important diagnostic data that is read during repairs.
This control unit is suitable for all variants of the Alfa Romeo 156 of the 932 series, including the sedan and sportwagon.
Compatibility extends from approximately 1997 to 2005 and various engine variants such as the 2.0 16V T.SPARK and diesel engines.
It is a central unit that communicates with other control units via the CAN bus and weighs approximately 1 kg.
Installation position and functionality of the Alfa Romeo 156 932 airbag control unit repair
The Alfa Romeo 156 932 airbag control unit is usually located under the center console on the transmission tunnel, allowing for central connection to all sensors. For a successful repair or replacement, correct installation and wiring are crucial to fully reactivate the safety systems and prevent further failure.
The control unit is typically located on the transmission tunnel below the center console, between the driver and passenger seats.
From there, the signals from the front and side impact sensors are received and processed.
It is connected to the power supply, CAN bus, and circuits for all airbags and seat belt pretensioners, enabling precise diagnosis in the event of faults.
