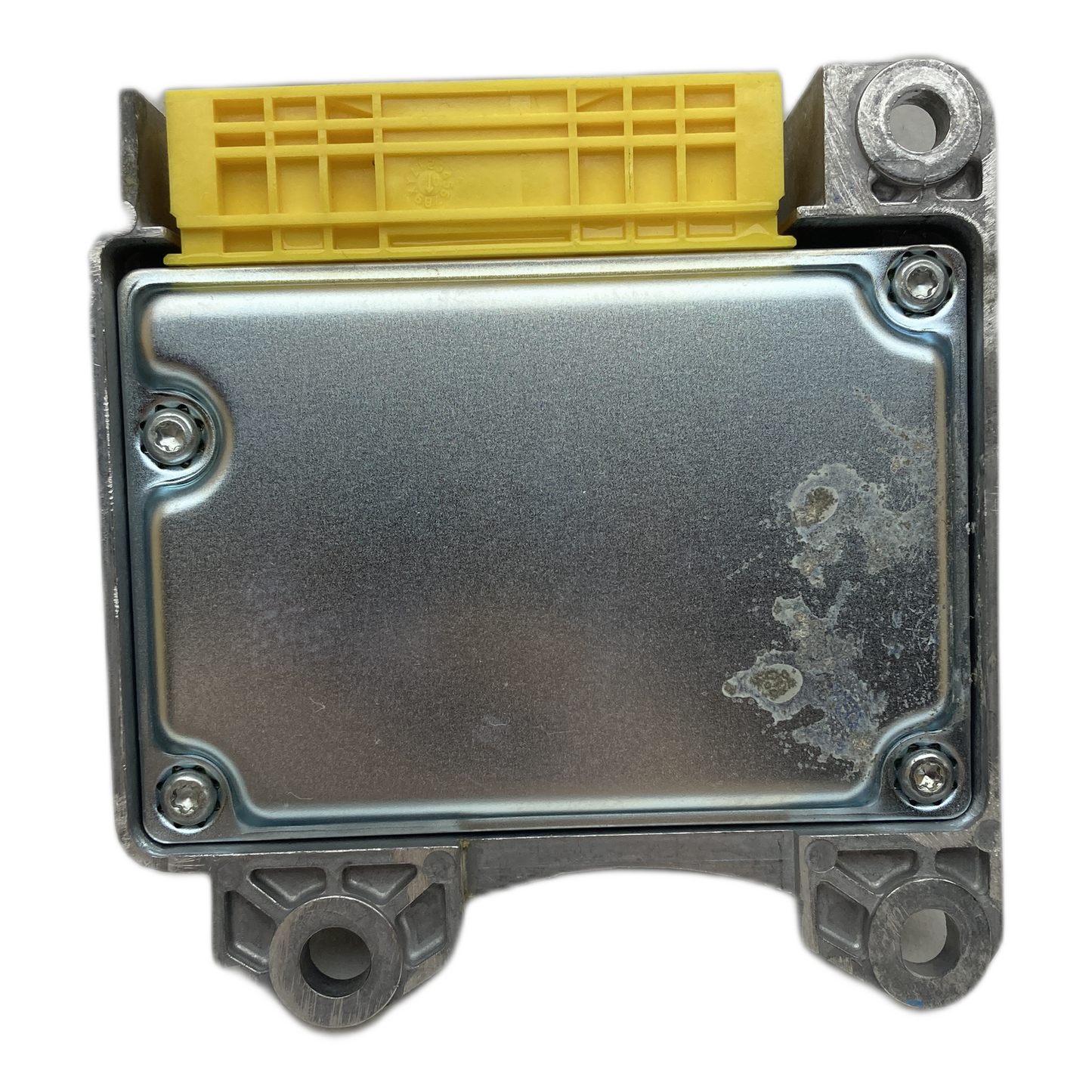

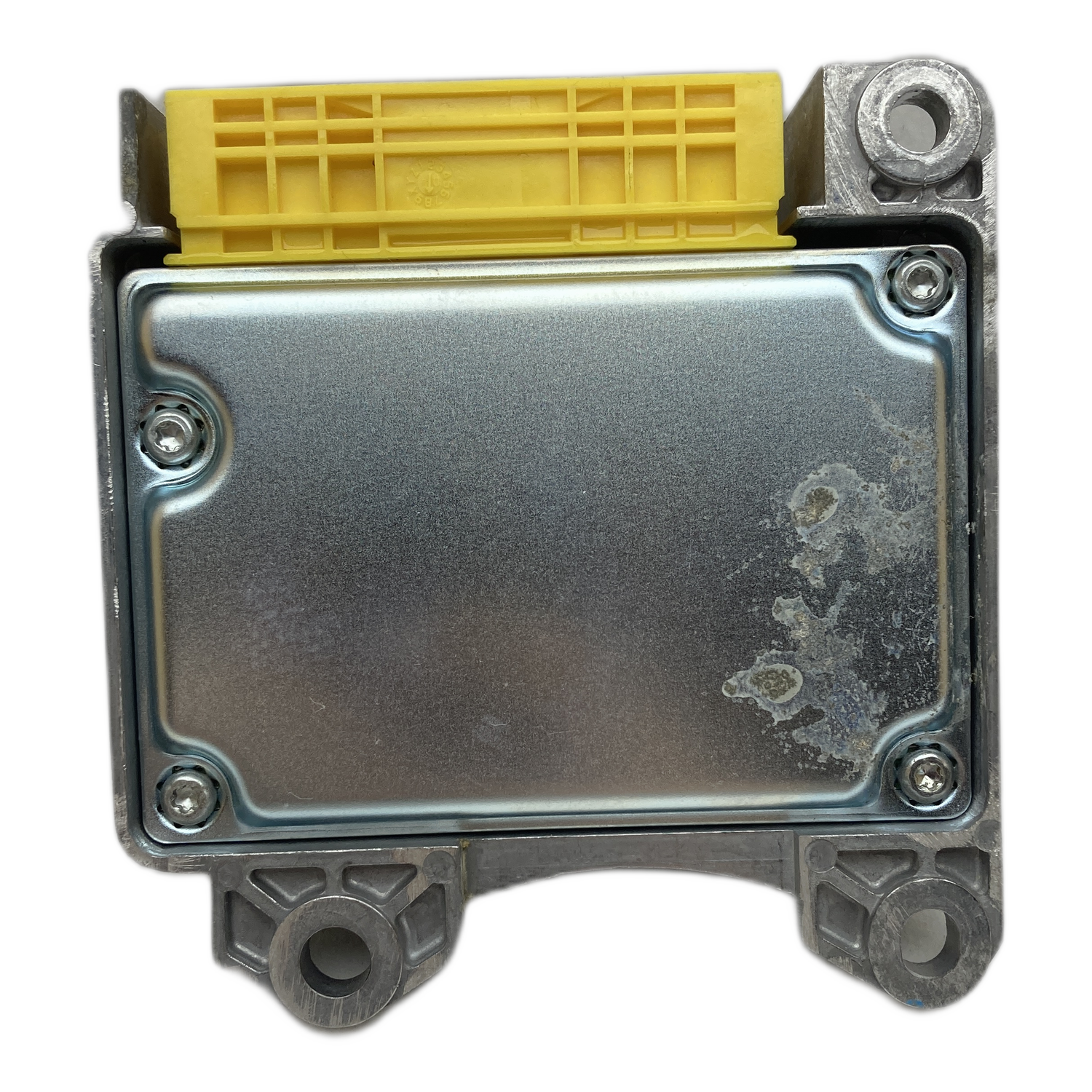

What is a Kia Picanto SA airbag control unit?
The Kia Picanto SA airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle, which is essential for safety in the Kia Picanto SA.
As the heart of the passive safety system, it decides in milliseconds whether to deploy airbags and seatbelt pretensioners. It is a safety-critical electronic module that continuously monitors the system's status.
This control unit is primarily suitable for the first-generation Kia Picanto (SA). It covers models from 2004 to 2011, particularly the 1.1-liter engine variant of the 5-door hatchback.
Why is the Kia Picanto SA airbag control unit defective?
The Kia Picanto SA airbag control unit can malfunction due to internal electronic errors, overvoltage damage, or by storing crash data after an accident. A failure often results in the activation of the airbag warning light and requires a professional Kia Picanto SA airbag control unit repair.
Common causes include internal component failures, which can be caused by aging or electrical spikes. Deleting crash data after a trigger is also a typical requirement, which the device records as "defective" in the error log.
Sometimes the control unit signals a fault when it loses communication with other vehicle systems. This can compromise vehicle safety and requires diagnosis by a specialized workshop.
Common error codes for Kia Picanto SA airbag control unit repair
During Kia Picanto SA airbag control unit repairs, specific error codes may occur that indicate internal problems with the module. These codes range from communication errors and memory errors to software problems, which can impair the function of the airbag system and require diagnostics.
- B1000 → Control unit communication error → Signals an interruption in the data connection to the airbag control unit.
- B1001 → Internal memory error in the control unit → Indicates problems with the internal memory or the configuration of the module.
- B1002 → Self-test failed in the control unit → The airbag control unit could not successfully complete its internal function test.
- B1003 → ECU EEPROM Read/Write Error → A problem saving or retrieving data in the ECU's internal EEPROM memory.
- B1035 → Voltage in the airbag control unit outside the permissible range → The control unit receives a supply voltage that is too high or too low.
- B1100 → Software error / programming error in the control unit → An internal problem with the software or firmware of the airbag module.
- B1115 → Loss of communication between control unit and instrument cluster → The connection to the display area in the dashboard is interrupted.
- B1120 → Incorrect variant coding in the control unit → The coding of the control unit does not match the vehicle configuration.
- B1135 → Internal watchdog error in the airbag control unit → An internal monitoring mechanism of the control unit has detected an error.
- B1170 → Defect in the internal diagnostics in the control unit → The internal diagnostic system of the airbag control unit is itself faulty.

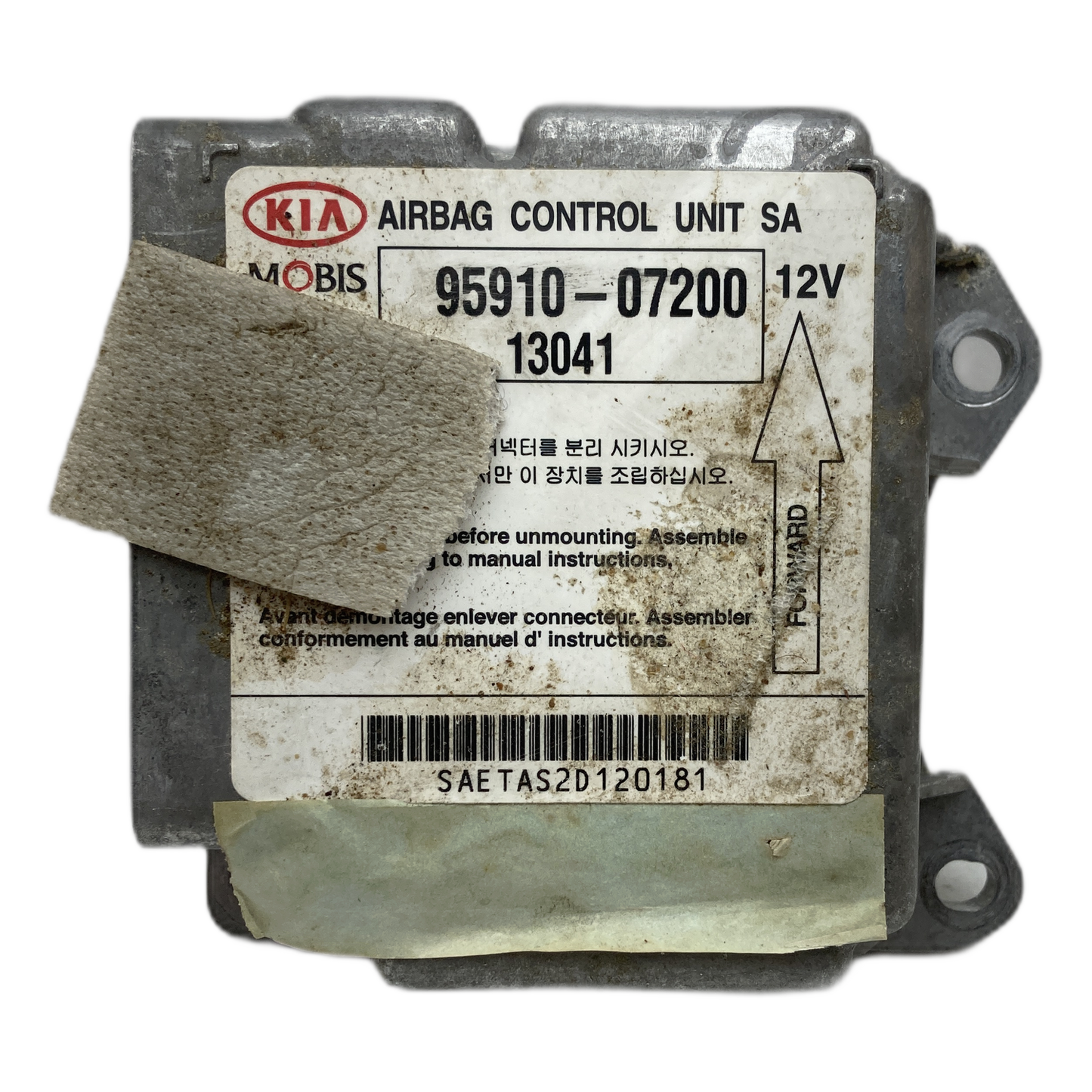

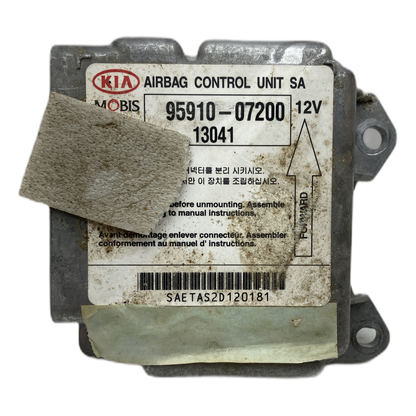

What part numbers are available for Kia Picanto SA airbag control unit repair?
For Kia Picanto SA airbag control unit repairs, specific OEM part numbers are relevant, ensuring precise identification and compatibility. These numbers confirm that the airbag control unit is the original one for the first generation Kia Picanto, which is crucial for a successful repair.
The numbers listed here are 100% verified and cover all original airbag control units for the Kia Picanto SA. These are only the central ECU, not sensors or other modules.
Correctly identifying the part number is crucial to ensuring the compatibility of the replacement part or the possibility of repair. This prevents malfunctions after installation.
- 95910-07120 (Kia OEM)
- 95910-07100 (Kia OEM)
- 95910-07720 (Kia OEM)
- 95910-1Y110 / 1Y959-10110 (supplier Continental / Mobis)
Function and installation of the Kia Picanto SA airbag control unit
The Kia Picanto SA airbag control unit continuously monitors all connected sensors and deploys the airbags within milliseconds if an accident is detected. After an accident, it stores important crash data.

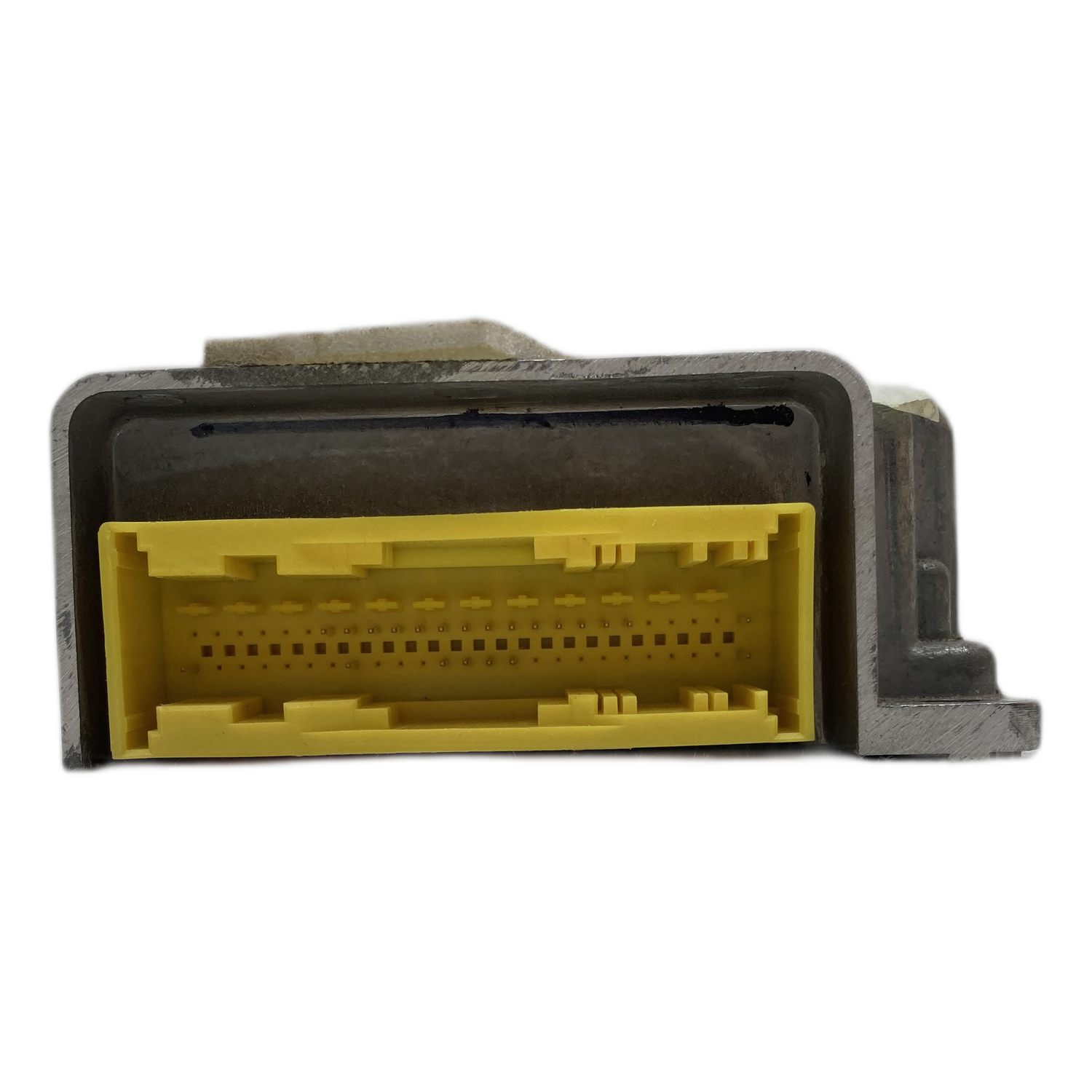

The system operates on a standard vehicle electrical system voltage of 12 volts, which is essential for safe operation. It is connected to the crash sensors and airbags via special connectors.
The airbag control unit is typically located in a protected location in the center console or footwell on the driver's side of the Kia Picanto SA. Access is well-designed for diagnostics and replacement.
Safety note: Before removing or repairing the Kia Picanto SA airbag control unit, the vehicle battery must be disconnected. This prevents accidental airbag deployment and protects against injury.
A special feature of this module is its repairability, as internal errors or stored crash data can often be reset. This represents a more cost-effective alternative to a complete replacement and supports Kia Picanto SA airbag control unit repair.
The repair typically takes 3-5 business days and includes fault diagnosis and erasing the error log. Only trained specialists should be commissioned for this safety-relevant work.
