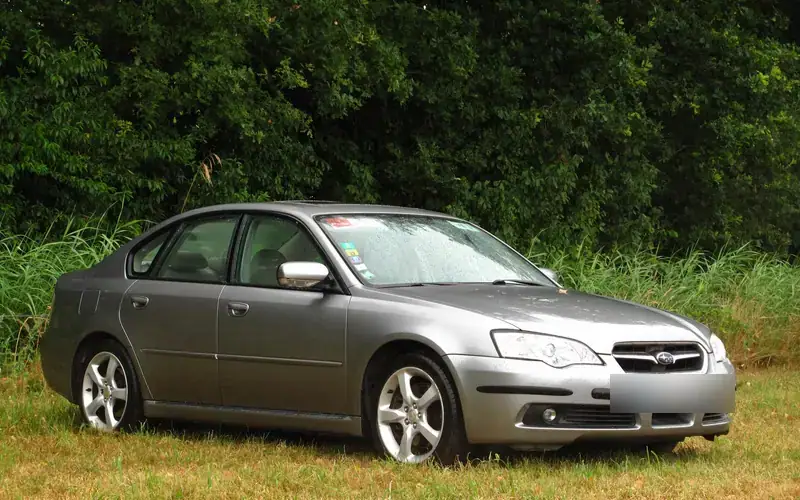

Subaru Legacy BL airbag control unit repair

What is a Subaru Legacy BL airbag control unit?

The Subaru Legacy BL airbag control unit, also known as the SRS control unit, is the central safety unit in your vehicle. It continuously monitors all sensors of the occupant protection system and, in the event of a collision, makes precise decisions about the deployment of the airbags and seatbelt pretensioners to provide optimal occupant protection.

This module stores important crash data and trouble codes essential for professional diagnosis and Subaru Legacy BL airbag control unit repair. It is a key component for the passive safety of your fourth-generation Subaru Legacy (BL/BP, 2003-2009).

Why is the Subaru Legacy BL airbag control unit defective?

A Subaru Legacy BL airbag control unit often fails because it stores crash data after an accident, requiring a reset, or due to internal electronic errors such as short circuits and memory problems. Overvoltage or age-related wear can also cause the system to fail, necessitating a Subaru Legacy BL airbag control unit repair.

After a triggering event, or even without a visible accident, the control unit often stores a crash record that prevents reset. This causes the airbag warning light to remain permanently active and the system to no longer function properly. Internal components of the control unit can also fail due to age, resulting in a variety of error codes.

Common error codes for Subaru Legacy BL airbag control unit repair

Subaru Legacy BL airbag control module repair is often initiated by specific error codes that indicate problems within the control module or its direct circuitry. These B-codes indicate communication errors, shorts in airbag circuits, or internal defects within the module itself. An accurate diagnosis is crucial to fixing the faulty system.

Subaru-compatible diagnostic tools are essential for troubleshooting a faulty airbag control unit. Typical errors that require repair include:

• B1000 → Control unit communication error → Signal disturbance or internal error of the airbag ECU
• B1001 → Short circuit in the driver's airbag circuit → Defect in the wiring or driver's airbag module
• B1002 → Open circuit in the driver's airbag circuit → Cable break or loose connection to the driver's airbag
• B1003 → Short circuit in the passenger side airbag circuit → Defect in the wiring or the passenger side airbag module
• B1004 → Open circuit in the passenger side airbag → Cable break or loose connection to the passenger airbag
• B1005 → Control unit internal error → Defect in the memory or logic of the airbag control unit
• B1010 → Diagnostic port error → Problem with the OBD-II interface or the internal diagnostic function
• B1015 → Error in the power supply of the control unit → Undervoltage, overvoltage or unstable power supply to the module
• B1030 → Error in the memory of the airbag control unit → Data corruption or defective memory module in the control unit
• B1100 → Roll Connector Circuit Error → Problem with the clock spring cable on the steering wheel, which is responsible for the airbag connection

What part numbers are available for the Subaru Legacy BL airbag control unit repair?

For Subaru Legacy BL airbag control unit repair, two exact OEM part numbers are primarily verified to identify genuine Subaru control units: 98221AN00A and 98221AN00E. Correct part identification using these numbers is critical for compatibility and successful restoration of airbag function.

These part numbers are specific to the airbag control units of the Subaru Legacy BL (model years approximately 2003-2009) and must exactly match the module being replaced or repaired. Deviations may lead to incompatibility, as Subaru strictly handles OEM numbers according to trim levels.

• 98221AN00A → Subaru → Original OEM Airbag Control Unit → Fits Subaru Legacy BL
• 98221AN00E → Subaru → Original OEM Airbag Control Unit → Fits Subaru Legacy BL

Alternative manufacturer numbers from Bosch, Continental, or Autoliv are not listed as direct exchange or replacement modules for these specific OEM numbers. Therefore, an exact part number match is essential for a successful Subaru Legacy BL airbag control unit repair.
