What is a Ford Transit Mk2 airbag control unit?
The Ford Transit Mk2 airbag control unit is the central safety unit in your vehicle, precisely activating all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensors, stores important crash data, and ensures the proper functioning of all airbag modules for occupant safety.
This highly specialized electronic module is the brain of the passive safety system in the Ford Transit Mk2. It receives and processes signals from various crash sensors to react to an impact in seconds, if necessary.
In the event of an accident, the control unit stores detailed crash data in its internal memory. This data is crucial for accident analysis and must be professionally erased before the vehicle can be put back into operation.

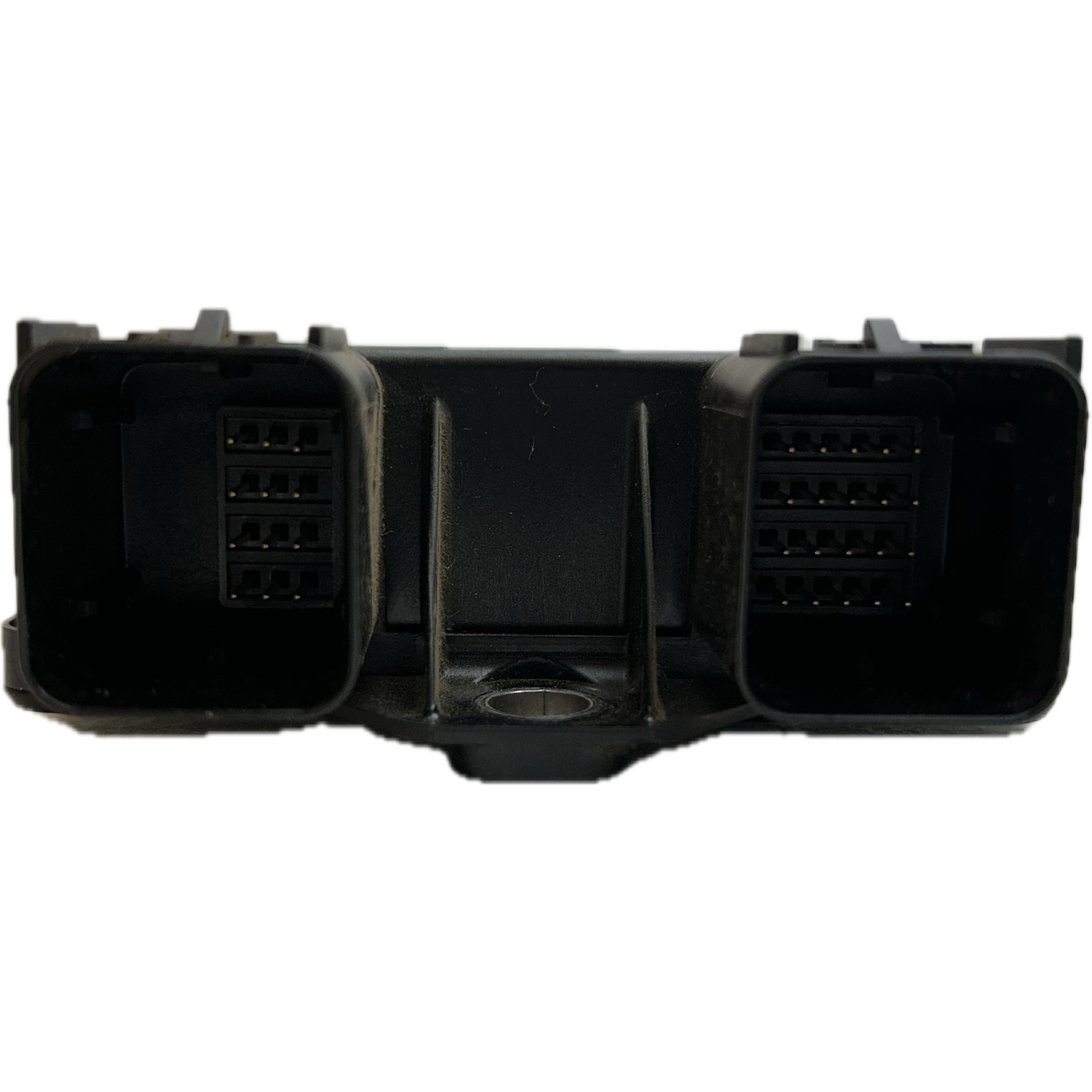

The control unit is connected to the vehicle's network via multi-pin connectors, through which it receives signals from sensors and sends commands to the airbag firing circuits. An internal protection circuit prevents accidental airbag deployment if the device is not connected correctly.
Why is the Ford Transit Mk2 airbag control unit faulty?
The Ford Transit Mk2 airbag control unit can fail for a variety of reasons, often following an accident that leaves crash data in the memory, or due to internal electronic errors and age-related wear, necessitating a Ford Transit Mk2 airbag control unit repair. Internal defects or voltage spikes can impair functionality and lead to error messages.
A common cause of a failure is a triggered accident, in which the control unit stores crash data. This data prevents the airbag system from being activated again, even if the damage has been repaired.
Electronic component failure, age-related wear and tear on components, or short circuits within the vehicle's wiring can also cause internal errors in the control unit. This often manifests itself in a permanently illuminated airbag warning light.
Power supply problems, such as overvoltage or insufficient ground, can damage the control unit's sensitive electronics. Such failures require a precise diagnosis before repair or replacement can be undertaken.
Common error codes for Ford Transit Mk2 airbag control unit repair
When repairing the Ford Transit Mk2 airbag control unit, specific OBD-II B codes and Ford flash codes are crucial. They directly indicate internal problems with the airbag control unit and enable accurate diagnosis to restore system safety. These trouble codes help precisely identify the cause of failure.
- B0001 → Driver airbag circuit fault → High resistance or open circuit in the driver airbag circuit
- B0002 → Driver airbag second stage circuit fault → Problem with the deployment of the second stage of the driver airbag
- B0003 → Driver airbag deployment control error → Error in the driver airbag deployment process
- B0020 → Passenger airbag circuit fault → High resistance or open circuit in the passenger airbag circuit
- B0028 → Passenger airbag second stage circuit fault → Problem with the deployment of the second stage of the passenger airbag
- B0091 → Control unit error → Internal defect or malfunction in the airbag control unit itself
- B021 → Airbag control unit ground resistance too high → Insufficient ground connection of the control unit
- B024 → Airbag control unit internal error → Internal system fault in the airbag control unit
- B029 → Airbag control unit design level incorrect → Incompatibility of the control unit with the vehicle configuration
- Flash Code 15 → Driver airbag circuit shorted → Short circuit in the driver airbag circuit
- Flash Code 16 → Passenger airbag circuit shorted → Short circuit in the passenger airbag circuit
- Flash Code 19 → Crash event detected → Data of an accident is stored in the control unit
- Flash Code 21 → Ground resistance control unit too high → Increased resistance of the ground connection to the control unit
- Flash Code 24 → Internal control unit error → Error within the electronics of the airbag control unit
- Flash Code 29 → Incorrect module design level → The installed control unit does not meet the expected specifications
- Flash Code 32 → Driver airbag circuit high resistance → Increased resistance in the driver airbag circuit
- Flash Code 33 → Passenger Airbag Circuit High Resistance → Increased resistance in the passenger airbag circuit
- Flash Code 34 → Driver airbag circuit low resistance → Resistance too low in the driver airbag circuit
- Flash Code 35 → Passenger Airbag Circuit Low Resistance → Too low resistance in the passenger airbag circuit
What part numbers are available for the Ford Transit Mk2 airbag control unit repair?
Several specific OEM part numbers are relevant for Ford Transit Mk2 airbag control unit repairs, ensuring exact compatibility with models from 1991 to 2000 and are essential for correct diagnosis and repair. These numbers help identify the correct replacement or repair part for your vehicle.
Correctly identifying the part number is crucial for a successful repair or replacement of the airbag control unit. Each number represents a specific variant that is tailored to the vehicle's model series and equipment.
These OEM part numbers were manufactured by Ford or are directly compatible with the original Ford Transit Mk2 models.
- JK2T-14B321-AJ (Ford OEM)
- 95VG-14B321-CA (Ford OEM)
- 8413414247 (Ford OEM)

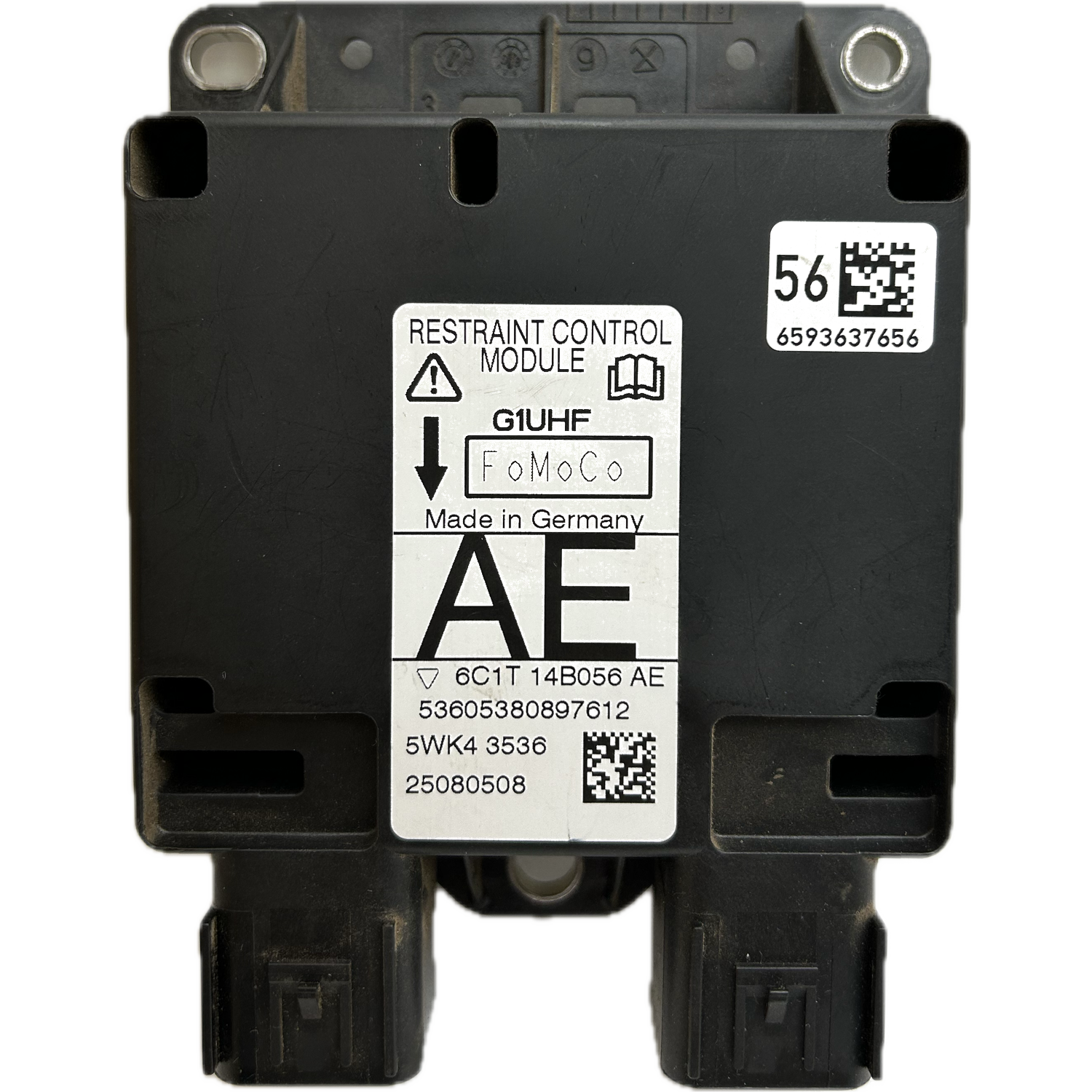

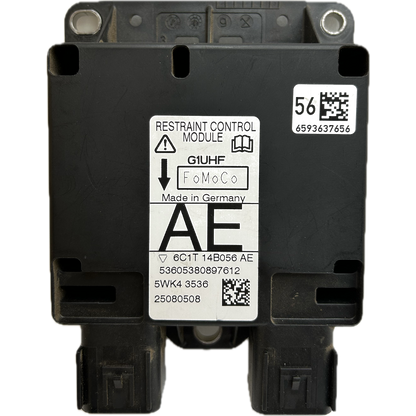

- 6C1T-14B056-AE (Ford OEM, compatible)
If you're planning a Ford Transit Mk2 airbag control unit repair, it's advisable to check the part number printed on your existing module or consult a specialist. This will ensure the replacement part is the perfect fit for your vehicle and ensures full safety.
