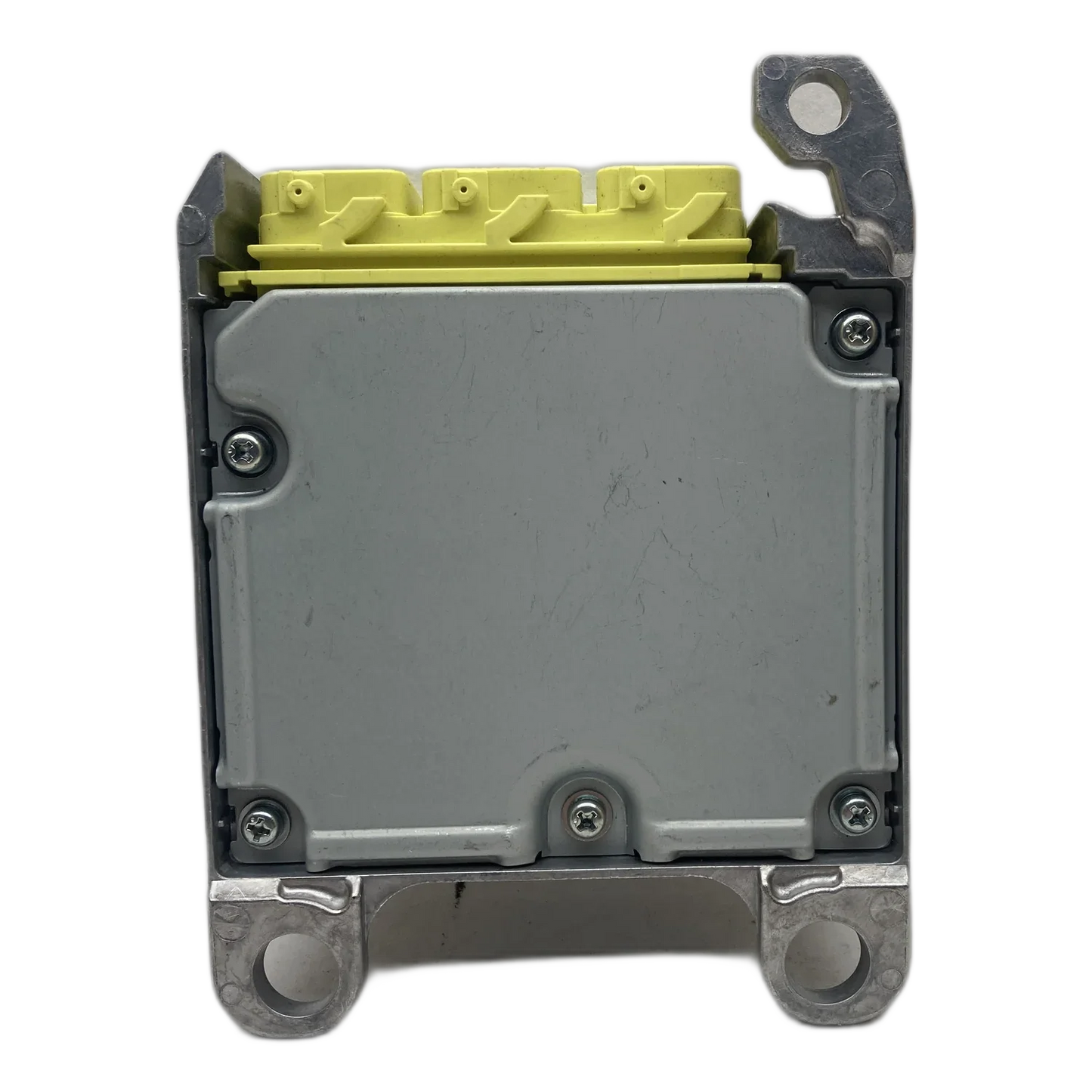

What is a Toyota Corolla E150 airbag control unit?
The Toyota Corolla E150 airbag control unit is your vehicle's central safety unit, which specifically activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors crash sensors, stores important accident and diagnostic data, and ensures the proper functioning of all safety modules in the Toyota Corolla E150. It is essential for occupant safety.
This electronic control unit, also known as the SRS-ECU, continuously analyzes the information provided by various sensors in the vehicle. In the event of a collision, the control unit decides in milliseconds whether to correctly trigger the passive safety systems.
Proper functioning of the airbag control unit is crucial to ensuring maximum safety for all vehicle occupants. Without a functioning control unit, airbags cannot deploy in an emergency.
Why is the Toyota Corolla E150 airbag control unit defective?
A Toyota Corolla E150 airbag control unit may be defective because it stores crash data after an accident, requiring reinitialization, or because electronic components fail due to age. Common causes include internal circuit faults, overvoltages, or even moisture ingress, which can lead to system failure of the safety functions. A defect is often indicated by an illuminated airbag warning light in the dashboard.
After an accident, the airbag control unit is blocked because it irreversibly stores the crash data in its internal memory. This blocking serves as a safety precaution and prevents accidental deployment.
Other causes of a defect can include software errors or power supply issues that impair the module's functionality. Professional diagnostics are essential in these cases.
Common error codes for Toyota Corolla E150 airbag control unit repair
Toyota Corolla E150 airbag control unit repairs often involve specific error codes that indicate problems with the control unit itself, rather than with sensors or other components. These codes often require a targeted diagnosis and repair of the airbag control unit to restore full functionality of the safety system and clear the illuminated airbag warning light.
Here are relevant and confirmed ECU-specific trouble codes that affect the airbag control unit (Airbag ECU):
- B1000 → Control unit communication error → Airbag ECU signal connection faulty.
- B1920 → Short circuit in the rear left airbag (P/T) - Circuit → Error in the airbag ignition circuit, originating from the control unit.
- B1921 → Open circuit in the rear left airbag (P/T) - Circuit → Missing connection in the airbag deployment circuit, signaled by the ECU.
- B1922 → Short circuit to ground in the rear right airbag (P/T) - Circuit → Unwanted ground connection in the ignition circuit, registered by the airbag control unit.
- B1923 → Short circuit to battery (12V) in the rear right airbag (P/T) - Circuit → Direct power connection fault in the airbag ignition circuit.
- B1925 → Short circuit in the rear right airbag (PIT) - Circuit → General short circuit in the airbag ignition circuit of the control unit.
- B1926 → Open circuit in the rear right airbag (P/T) - Circuit → Open circuit in the airbag ignition system, detected by the ECU.
- B1927 → Short circuit to ground in the rear right airbag (P/T) - Circuit → Faulty ground connection on the airbag ignition circuit.
- B1928 → Short circuit to battery in the rear right airbag (P/T) - Circuit → Direct voltage on the airbag ignition circuit.
These codes are read using a special OBD-II diagnostic tool that can process Toyota-specific B-codes. A precise error analysis is essential for a successful Toyota Corolla E150 airbag control unit repair.
What part numbers are available for the Toyota Corolla E150 airbag control unit repair?
For Toyota Corolla E150 airbag control unit repairs, exact OEM part numbers are crucial, as these modules are coded for specific vehicles and ensure compatibility. Several original part numbers from Toyota and its suppliers, such as TRW and Autoliv, have been verified for models from approximately 2006 to 2012 and must be verified for correct replacement or repair.
Any replacement or repair should only be carried out with the exact part numbers to ensure the functionality of the safety system. Airbag control units are not universally compatible.
Here are the verified and safe airbag control unit part numbers for the Toyota Corolla E150 (and closely related, compatible models):
- 89170-12160 (Toyota – Genuine OEM Airbag Control Unit)
- 89170-02180 (TRW – Original OEM Airbag Control Unit, Supplier)
- 89170-42D50 (Toyota / Supplier – Genuine OEM Airbag Control Unit)
- 152100-4560 (Autoliv – Original OEM Number, supplier to 8917042D50)
- 89170-0F042 (Toyota – Original OEM airbag control unit, also for related series)
- 85942-12010 (Toyota – Original OEM airbag control unit, also for related series)
- 89170-02N50 (Toyota – Original OEM airbag control unit, also for later Corolla models)
Providing the correct part number is the first step to successfully diagnosing and performing a Toyota Corolla E150 airbag control unit repair.
How the Toyota Corolla E150 airbag control unit works
The Toyota Corolla E150 airbag control unit is the heart of the occupant protection system and continuously analyzes data from crash sensors to deploy the necessary airbags and seatbelt pretensioners in a split second in the event of a collision. It also performs self-diagnosis of the entire system and signals errors via the warning light.
The module stores important crash data in its internal EEPROM, which can be read for diagnostic purposes after an accident. This data must be erased after repair to make the control unit operational again.
The control unit communicates with other vehicle control units via the CAN bus and continuously monitors the status of the airbag system to ensure maximum safety.
Installation and position of the Toyota Corolla E150 airbag control unit
The Toyota Corolla E150 airbag control unit is typically mounted centrally in the vehicle floor beneath the center console or front seats to ensure precise measurement of impact forces. Its position is critical for the correct function of crash detection and the safe deployment of the airbags.
Access to the control unit often requires removing the center console or seats, which requires careful handling. It is connected to the CAN bus, the vehicle battery, the airbag and seatbelt pretensioner ignition circuits, and the various crash sensors via multi-pin connectors.
When installing and removing the system, it is essential to follow the manufacturer's specifications and safety guidelines, as the system is highly sensitive.
Advantages of a Toyota Corolla E150 airbag control unit repair
Repairing a Toyota Corolla E150 airbag control unit offers a cost-effective and environmentally friendly alternative to purchasing a new one, especially if the defect is caused by stored crash data. Professional repair can restore the original module to full functionality without the need for recoding to the vehicle.
A repair allows the control unit's original coding and VIN programming to be retained. This saves time and additional costs that would otherwise be incurred if a replacement part were reprogrammed.
In addition, the repair is often much faster than purchasing a new original part, which significantly reduces the downtime of your Toyota Corolla E150 and protects the environment.
