Toyota Prius III XW30 airbag control unit repair

What is a Toyota Prius III XW30 airbag control unit?

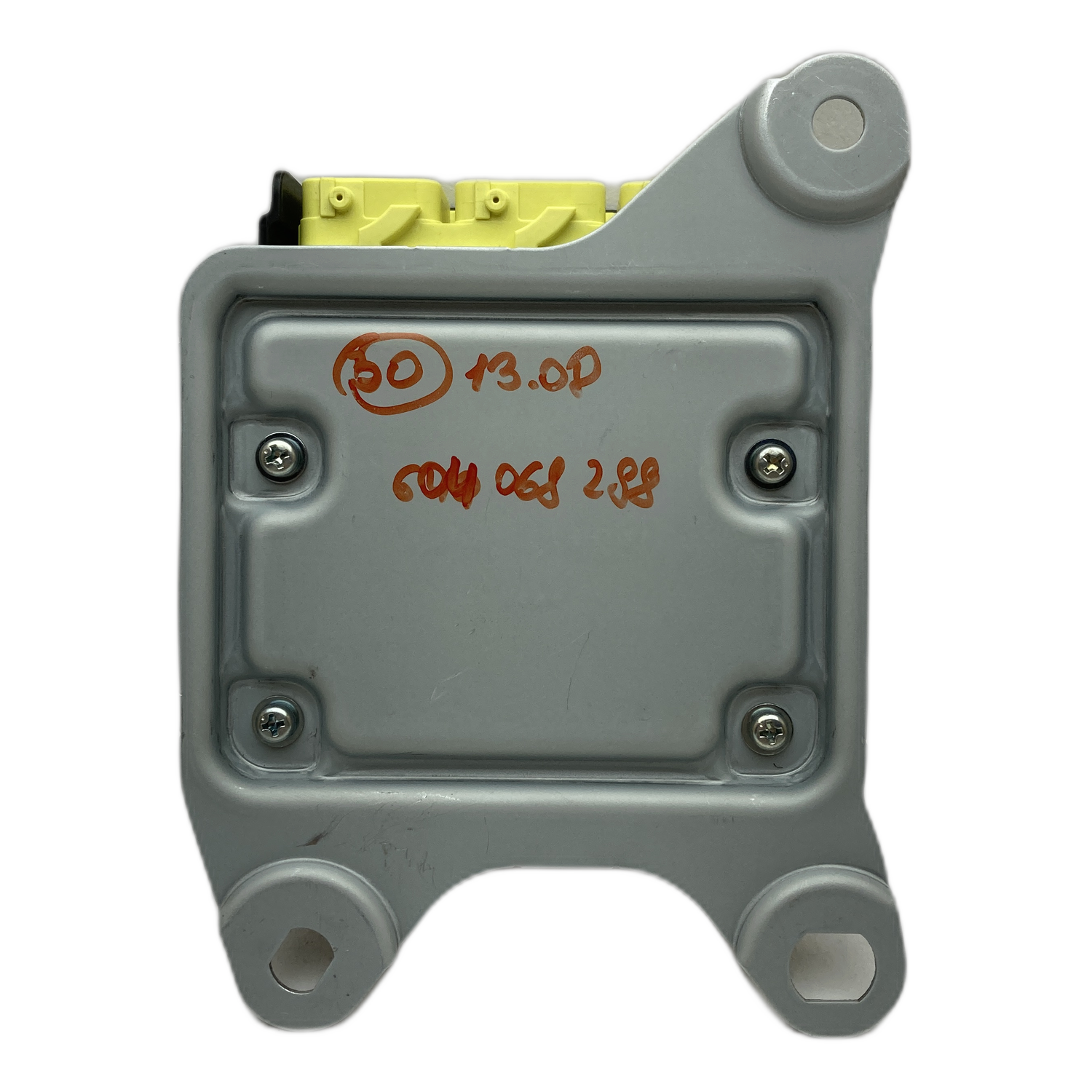

The Toyota Prius III XW30 airbag control unit is the central safety unit in your vehicle, activating all occupant restraint systems in the event of a collision. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of all airbag modules and seatbelt pretensioners to guarantee your safety. A timely Toyota Prius III XW30 airbag control unit repair is crucial.

This module, also known as the SRS control unit, is primarily responsible for detecting impact events. It is typically located centrally in the vehicle, protected from external influences.

Its main task is to deploy the airbags and seatbelt pretensioners within milliseconds. It also performs continuous self-diagnosis and stores error codes in case of deviations.

Why is the Toyota Prius III XW30 airbag control unit defective?

A Toyota Prius III XW30 airbag control unit often fails because it stores crash data after an accident, requiring reprogramming or a reset, causing the airbag warning light to remain permanently illuminated. Internal components can also be damaged by aging, moisture, or overvoltage, leading to system failure.

One of the most common causes of a defect is the storage of crash data after an accident. This data blocks the device's normal function until it is professionally deleted.

Internal electronic components can also wear out over time or break down due to temperature fluctuations and vibrations. This can lead to sporadic malfunctions or complete failure of the airbag system.

Moisture ingress or short circuits in the vehicle's electronics can also damage the control unit. A precise diagnosis is essential for any Toyota Prius III XW30 airbag control unit repair.

Common error codes for Toyota Prius III XW30 airbag control unit repair

Diagnosing error codes is a key step in Toyota Prius III XW30 airbag control unit repair, as it provides precise information about the nature of the failure and enables targeted repair. Typical control unit-specific errors often indicate internal defects or communication problems that require professional repair.

These codes are crucial to understanding why the airbag warning light is on and what actions are needed to correct the problem.

• B1801 → Control unit error: Clock spring (steering wheel slip ring) defective → This error code often indicates a defective steering wheel slip ring that interrupts the electrical connection between the steering wheel and the control unit.
• B1811 → Control unit error: Clock spring (steering wheel slip ring) defective → Similar to B1801, this code also signals a problem with the clock spring, which can affect the function of the driver's airbag.
• B1000 → Control Unit Communication Error → This code indicates a general communication problem between the airbag control unit and other vehicle systems, often an indicator of an internal failure.
• B1920 → Short circuit in the rear left passenger airbag circuit → This code reports a short circuit in the wiring harness or the airbag itself, which is monitored by the control module and is dangerous.
• B1921 → Open circuit in the rear left passenger airbag circuit → An open circuit in the circuit prevents the airbag from being activated and must be repaired immediately.
• B1922 → Passenger rear right airbag circuit short to ground → This fault indicates a short in the airbag circuit to vehicle ground.
• B1923 → Short circuit to battery in the rear right passenger airbag circuit → A short circuit to the battery supply in the airbag circuit can lead to uncontrolled deployment.
• B1925 → Short circuit in the rear right passenger airbag circuit → This generic short circuit fault requires a detailed inspection of the affected airbag circuit.
• B1926 → Open circuit in the rear right passenger airbag circuit → An open circuit in this circuit will prevent the airbag from functioning properly.
• B1927 → Passenger rear right airbag circuit short to ground → This specific fault indicates a ground contact in the wiring harness or the airbag.
• B1928 → Short circuit to battery in the rear right passenger airbag circuit → Direct contact with the on-board voltage can severely impair the functionality of the airbag system.

What part numbers are available for the Toyota Prius III XW30 airbag control unit repair?

For the Toyota Prius III XW30 airbag control unit repair, the manufacturer part numbers 89170-47100, 89170-47110, 89170-47120 and 89170-47140 are stored for this product. These numbers belong to airbag control units of this model. The number on the label of your airbag control unit can be entered in the repair order.

Further stored numbers are 89170-47101, 89170-47111, 89170-47180 and 89170-47190.

Where can I find professional help for Toyota Prius III XW30 airbag control unit repair?

For a professional Toyota Prius III XW30 airbag control unit repair, you should contact specialized workshops or electronics repair services experienced with airbag systems. These experts have the necessary equipment and expertise to diagnose error codes, erase crash data, and precisely repair internal defects.

A qualified workshop can remove the defective control unit, diagnose it, and repair it. This is often a more cost-effective alternative to purchasing a new one.

Make sure the service provider offers a warranty on the repair and that the systems are properly inspected and tested after repairs. Your safety depends on it.
